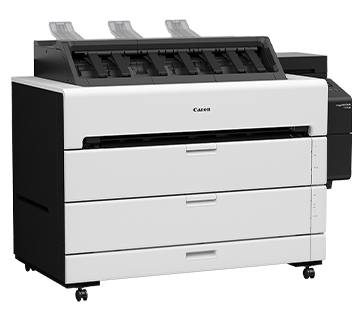

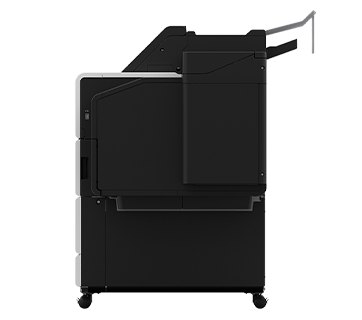

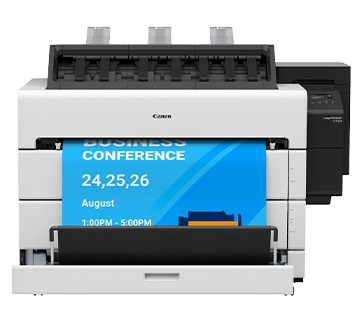

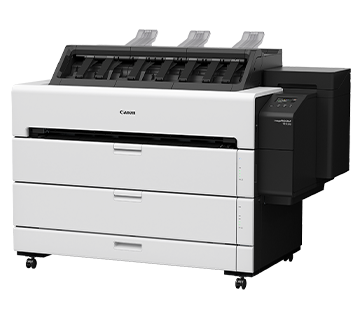

imagePROGRAF TZ-5320
imagePROGRAF TZ-5320
Surpass Every Expectation with High Print Speed
A 36″ printer with high-speed continuous printing and fast first print out time. Perfect for Production CAD market, the TZ-5320 delivers pin-sharp lines and text and further enhances productivity with innovative media handling capabilities and workflow solutions.
Description
Features
Fast Print Speed
Twin carriage motors ensure maximum productivity is achieved on the new TZ series. With print data processing, pre-print operation and print spooling optimised, the TZ series realised fast throughput during continuous printing (up to 4 pages per minute on A1 plain papers).
Productivity at Its Peak
Dual-roll feeding unit enables users to load up to two rolls of media, reducing the frequency of switching between different media types or sizes in high volume printing. Optional stacker supports neat output collations, while the sub ink tank system allows empty ink tanks to be replaced while the printer continues to print, maximising productivity.
Smart Roll Paper Set
All models are equipped with an advanced Smart Roll Paper Set function that automatically detects paper feed and type and estimates the remaining paper quantity. The speed-up of the paper feeding process reduces the time it takes to load the roll paper.
Specifications
Specifications
Printer
|
Printer Type |
5-Colour 36″ (914 mm) |
|
Number of Nozzles |
15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each） |
|
Maximum Print Resolution |
2,400 × 1,200 dpi |
|
Nozzle Pitch |
1,200 dpi (2 lines) |
|
Line Accuracy*1 |
± 0.1% or less |
|
Minimum Ink Droplet Size |
5 pl |
|
Ink Capacity |
Sales Ink: 330 ml / 700 ml (MBK, BK, C, M, Y) |
|
Ink Type |
Pigment Ink |
|
Printer Language |
SG Raster (Swift Graphic Raster) |
|
Printing Solutions |
Direct Print Plus, CPP PRISMAproduce Tech, Easy-PhotoPrint Editor, Canon PRINT (Mobile), Canon Print Service (Mobile), Free Layout Plus, PosterArtist Wndows/Lite/Web |
|
Management Solutions |
Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box |
|
Standard Interfaces (Built-in) |
USB A Port: USB B Port (Series B, 4 pins): Gigabit Ethernet: Wireless LAN: |
|
Memory |
Standard: 128 GB |
|
Hard Disk |
500 GB (Encrypted) |
Print Speed*3
|
Plain Paper |
|
|
CAD Drawings, A0 |
26 sec [Fast (Custom Q5)] |
|
Poster, A0 |
29 sec [Fast (Custom Q5)] |
|
Heavyweight Coated Paper HG |
|
|
Poster, A0 |
2 min 34 sec [Standard] |
|
Glossy Photo Paper HG 170 |
|
|
Poster, A0 |
5 min 14 sec [Standard] |
Media Handling
|
Media Feed and Output |
|
|
Roll Paper |
Two Roll, Front Load, Front Output / Top Output |
|
Cut Sheet |
Front Load, Front Output*4 |
|
Media Width (Roll / Cut Sheet) |
203.2 ～ 917 mm |
|
Min. Printable Length |
|
|
Roll Paper |
Front Output: 203.2 mm, Top Output: 205 mm |
|
Cut Sheet |
203.2 mm |
|
Max. Printable Length |
|
|
Roll Paper |
18 m*5 |
|
Cut Sheet |
610 mm |
|
Maximum Outer Roll Diameter |
175 mm or less |
|
Borderless Printing Width |
203.2 ～ 917 mm |
|
Margins (Recommended Area) |
|
|
Roll Paper |
Top: 20 mm, Bottom: 3 mm, Side: 3 mm |
|
Cut Sheet (Others) |
Top: 20 mm, Bottom: 20 mm, Side: 3 mm |
|
Margins (Printable Area) |
|
|
Roll Paper |
Top: 3 mm, Bottom: 3 mm, Side: 3 mm |
|
Roll Paper (Borderless Print) |
Top: 0 mm, Bottom: 0 mm, Side: 0 mm |
|
Cut Sheet (Others) |
Top: 3 mm, Bottom: 20 mm, Side: 3 mm |
Dimensions & Weight*6
|
Dimensions (W x D x H) |
|
|
Main Unit |
1,548 x 762 x 1,126 mm (Basket Closed) |
|
Main Unit + Paper Output Support + Top Output Guide |
1,548 x 1,293 x 1,428 mm (Basket Open) |
|
Weight |
|
|
Main Unit |
205 kg |
|
Main Unit + Paper Output Support + Top Output Guide |
206 kg |
|
Packaged Dimensions (W x D x H) |
|
|
Main Unit + Paper Output Support + Top Output Guide + Pallet |
1,704 x 946 x 1,373 mm |
|
Packaged Weight |
|
|
Main Unit with Basket + Paper Output Support + Top Output Guide + Pallet |
277 kg |
Power & Operating Requirements
|
Power Supply |
AC 100 – 240 V, 50 – 60 Hz |
|
Power Consumption |
|
|
Printing*7 |
Approx. 111 W |
|
Sleep Mode*7 |
Approx. 2.1 W |
|
Power Off |
Approx. 0.1 W |
|
Operating Environment |
|
|
Temperature |
15 ～ 30 °C |
|
Humidity |
10 ～ 80 % RH (no dew condensation) |
|
Acoustic Sound |
|
|
Acoustic Power*8 |
Operation: Approx. 70 dB |
|
Acoustic Pressure*8 |
Operation: Approx. 52 dB (A) |
Accessories
|
2″/3″ Roll Holder (Optional) |
RH2-34 |
Consumables
|
Print Head |
PF-06 |
|
Maintenance Cartridge |
MC-30 |
|
Ink Tank |
Matte Black / Black / Cyan / Yellow: PFI-8340 (330 ml) / PFI-8740 (700 ml) |
- User adjustments is required.
Printing environment and media must match those used for the adjustments.
Paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only. - Support IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP).
- Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Manual feed using media locking lever.
- Varies according to the OS and application.
- Include roll holder set, exclude ink and print head.
- Using wired LAN.
- Measured using ISO 7779 standard by using 36 inch plain paper, standard mode and line drawing/text mode.
