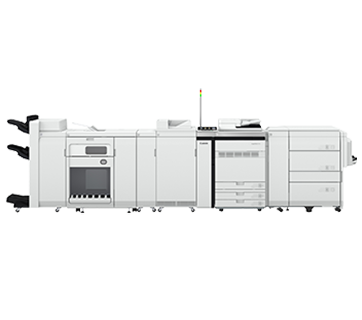

imagePRESS V900 Series

Canon imagePRESS V900 Series digital press designed for the vast requirements of print service providers commercial and in-house

Boost productivity with a new level of automation. Reduce time on manual tasks, boost productivity, and easily produce a wide range of applications.

Categories: Digital Copiers, imagePRESS

Description
Specifications

Description

Features

Maximmise Efficiency

With duplex printing and semi-automatic ADF scan automates processes helps to reduce manual labour and save time and consumables costs.

Print in High Quality

With the in-line spectrometric sensor that ensure consistent quality across all applications by automatically adjusting colours.

Expand Application Range

Media-handling capabilities has been enhanced mean you can print a wide range of media including envelopes, business cards, thin coated paper, and luxury textured media.

Specifications

Machine Type	Digital colour cut-sheet press
Core Functions	Print, Copy, Scan, Send, Store
Processor Speed	1.8 GHz Dual Core
Control Panel	10.1 inch WSVGA
Memory	6 GB
Storage	SSD 512 GB
Interface Connection	Standard: 1000Base-T/100Base-TX/10Base-T
Paper Input (Standard)	Standard: 1,650 sheets 550-sheet Paper Cassette x 3
Paper Supply Capacity (A4, 80 gsm)	10,400 sheets
Finishing Capabilities	Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch (multiple patterns), Document Insertion, Fold (C-, Z-, Half, Double parallel, Accordion-Z fold), Trimming
Supported Media Types	Thin (52-63 gsm), Plain (64-105 gsm), Recycled, Color, Thick (106-350 gsm), Coated (70-350 gsm), Embossed, Bond, Transparency, Label, Pre Punched, Letterhead, Index, Transparent film, Translucent film, Envelope, Synthetic, Magnetic
Supported Media Sizes	A3S, B4S, A4L, A4S, B5S, B5L, A5S, A5L, A6S, SRA3S, 11”x17”S, LGLS, LTRL, LTRS, EXE_L, STMTS, 12”x18”S, 13”x19”S, 8KS, 16KL, 16KS, Envelope, Custom size (Cross track: 100~330.2 mm, In track: 148~487.7 mm). Free size (Cross track 100.0~330.2 mm, In track: 182.0~487.7 mm): 1300 mm
Supported Media Weights	52-350 gsm
Dimensions (W x D x H)	1,327 mm x 872 mm x 1,185 mm
Weight	Approx. 284 kg

Printing Method	Colour Laser Beam Printing
Print Speed	V900: 90 ppm V800: 80 ppm V700: 70 ppm
Print Resolution (dpi)	2,400 x 2,400 dpi
Page Description Languages	PS3, PCL6, UFRII

Copy Speed	V900: 90 ppm V800: 80 ppm V700: 70 ppm
First-Copy-Out Time	BW 7.4 seconds or less CL 8.2 seconds or less
Copy Resolution (dpi)	600 dpi x 600 dpi, 600 dpi x 300 dpi, 300 dpi x 300 dpi
Multiple Copies	Up to 9,999 copies
Copy Density	Automatic or Manual (9 Levels)
Magnification	25% – 400% (1% Increments)
Preset Reductions	25%, 50%, 70%
Preset Enlargements	141.4%, 200%, 400%
Basic Copy Features	Preset R/E Ratios by Area, Paper Setting, Previous Setting, Favourite Setting, Finishing, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel
Special Copy Features	Book to Two Pages, Two-sided Original, Finishing, Booklet, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Density Adjustment, Original Type Selection, Transparency Cover Sheets, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Shift, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Job Done Notice, Mirror Image, Print on Tab, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Detect Feeder Multi Sheet Feed, Free Size Original

Type	Colour Platen and Single-pass Duplexing Automatic Document Feeder
Document Feeder Paper Capacity (80 gsm)	200 sheets
Acceptable Originals/Weights	Sheet, Book, 3-Dimensional objects
Supported Media Sizes	Document Feeder media weight: 38-220 gsm (A/B) 5,6,7 50-220 gsm (inch) 8,9 38-220 gsm (A/B) 10,11,12 50-220 gsm (inch) 13,14
Scan Speed	BW: 270 ipm (A4/LTR) CL: 270 ipm (A4/LTR)

Optional/Standard	Optional
Name	imagePRESS Server N500/P400
Print Resolution (dpi)	1200 x 1200, 600 x 600
Page Description Language(s)	PS3, PCL6
Memory	8 GB
Hard Disk Drive	N500: HDD 1 TB SSD 240 GB P400: HDD 500 GB
Processor Speed	N500: Intel Core i5 8500 P400: Intel Pentium Gold G5400
System	N500: FS500 Pro P400: FS500
Fonts	PS: 138 PCL: 80
Supported Operating Systems	Windows 8.1 32/64 Windows 10 32/64 Windows 11 64 Windows Server 2012 64 Windows Server 2012 R2 64 Windows Server 2016 64 Windows Server 2019 64 Windows Server 2022 64 MacOS Mojave (10.14.x) MacOS Catalina (10.15.x) MacOS Big Sur (version 11.0) MacOS Monterey (version 12)
Interface	N500: 2 x Ethernet (1000Base-T/100Base-TX/10 Base-T), USB3.2 x 5, USB2.0 x 2 P400: 2 x Ethernet (1000Base-T/100Base-TX/10 Base-T), USB3.0 x 2
Network Protocols	TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port 9100, SNTP, 802.1X, DHCP, DNS, NTP)
Direct Print	PDF2.0, EPS, TIFF, JDF1.8/JMF
VDP	N500: PPML3.0, PDF/VT-1, PDF/VT2, VPS, FreeForm, FreeForm Plus P400: PDF/VT-1 (Requires Fiery JobExpert and PDF Processing Kit), FreeForm, FreeForm Plus
Fiery Print Controller Standard Features	Fiery Command WorkStation 6 / Paper Catalog / Fiery Remote Scan / Fiery Hot Folders & Virtual Printers
Fiery Print Controller Options	P400 & N500: Fiery Impose / Fiery Compose / Fiery Impose & Compose N500: Removable HDD Kit
HW Platform	N500: NX Pro P400: E500

Optional/Standard	Optional
Name	PRISMAsync for iPR V900 series
Print Resolution (dpi)	1200 x 1200, 600 x 600
Page Description Language(s)	Postscript L3, PDF 2.0, APPE V5.7, PPML, IPDS (IS/3 standard compliant), PCL/PJL (transaction printing)
System	Windows Server 2012 R2, 8.1 (32/64bit) and 10, Server 2016 & 2019 MacOS 10.15 (64 bit), MacOS 11 (64 bit, Big Sur, Intel)
Fonts	139 Type 1 fonts for Roman languages; User import of PS fonts via Settings Editor; Optional Adobe Asian fonts: Japanese: 5 fonts Chinese: 2 fonts for simplified Chinese, 1 font for traditional Chinese; Korean: 1 font for Korean
Supported Operating Systems	Windows 8.1 32/64 Windows 10 32/64 Windows 11 64 Windows Server 2012 64 Windows Server 2012 R2 64 Windows Server 2016 64 Windows Server 2019 64 Windows Server 2022 64 macOS Mojave (10.14.x) macOS Catalina (10.15.x) macOS Big Sur (version 11.0) macOS Monterey (version 12)
Interface	Ethernet 10/100/1000 BaseT x 2 USB3.0 x8
Network Protocols	TCP/IP, IPv6 Support, IPSec, NetBEUI/SMB (hotfolders, scan-to-file), secure IPP, SNMP V3, Job MIB, HTTP, HTTPS, Socket printing (port9100), LPR/LPD, JDF/JMF, LDAP, WebDav
Direct Print	PDF, JDF
VDP	PDF/VT-1, PPML
PRISMAsync Controller Standard Features	PS/PDF, Scheduler, Multiple Queues/hotfolders, Streaming, Accounting, Scanning, PPML, Remote Manager, Remote Service, Integrity checker, Windows 10 LTSC
PRISMAsync Controller Options	E-shredding, Advanced Color Management, Advanced Impose, DocBox, Page Programming, DP Link, PCL6 TP, IPDS, PDF for IPDS

Copy Tray	Paper Capacity: 1-side: 250 sheets (80 g/m²) 2-side: 100 sheets (80 g/m²)
Staple Finisher	Staple Finisher AG1 Upper Tray (A) Capacity: A4/A4R/A5R/A3/SRA3/13”x19” 1,000 sheets (52-300 gsm) / 200 sheets (301-350 gsm) Long sheet (Over 487.7 mm up to 762 mm length) 100 sheets (52-79 gsm) / 50 sheets (80-150 gsm) / 25 sheets (151-300 gsm) / 20 sheets (301-350 gsm) Lower Tray (B) Capacity: A4R 2,000 sheets (52-300 gsm), A3 1,500 sheets (52-300 gsm), SRA3 1,000 sheets (52-300 gsm), Any size 200 sheets (301-350 gsm) Paper Weight: 52 to 350 gsm Staple Position: Corner, Double Staple Capacity: A4: 100 sheets, A3/A4R: 50 sheets Dimensions (W x D x H): 800 mm x 792 mm x 1,239 mm (with Long Sheet Tray : 1,136 mm x 792 mm x 1,239 mm)
Booklet Finisher	Booklet Finisher AG1 Tray Capacity / Paper Weight / Staple Position / Staple Capacity: same as Staple Finisher-YN2A Booklet stitch paper size: A3, A4R, SRA3, 13”x19”, Free size (210 x 279.4 mm to 330.2 x 487.7 mm) Booklet stitch paper weight: Body sheet 52-220 gsm, Cover sheet 64-300 gsm Booklet stitch staple capacity: 25 sheets (52-80 gsm, include cover) Dimensions (W x D x H): 800 mm x 792 mm x 1,239 mm (with Long Sheet Tray : 1,136 mm x 792 mm x 1,239 mm) Weight: Approx. 180 kg Power: 220-240V, 50-60Hz, 8A Non Staple Folded Bunch Capacity: up to 5 sheets (60 to 105 gsm) Power Source: 100-240V, 50/60Hz, 2.8A Dimensions (W x D x H): 896 × 765 × 1,040 mm (when the extension tray is extended) Weight: Approx. 110 kg
Hole Puncher	(Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1) Two or Four Holes Punch Hole type: BT1: 2 holes and 4 holes (FRN) selectable, BU1: 4 holes (SWE) Punch Paper Weight: 52-300 gsm Punch Paper Size: 2 holes: A3, A4, A4R, Free size (182 x 182 mm to 297 x 432.0 mm excluding 203 x 257 mm to 297 x 270 mm) 4 holes: A3, A4, Free size (257 x 182 mm to 297 x 432 mm)
Inner 2/4 Hole Puncher	(Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1) Two or Four Holes Punch Hole type: BT1: 2 holes and 4 holes (FRN) selectable, BU1: 4 holes (SWE) Punch Paper Weight: 52-300 gsm Punch Paper Size: 2 holes: A3, A4, A4R, Free size (182 x 182 mm to 297 x 432.0 mm excluding 203 x 257 mm to 297 x 270 mm) 4 holes: A3, A4, Free size (257 x 182 mm to 297 x 432 mm)
Inner 4 Hole Puncher	(Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1) Two or Four Holes Punch Hole type: BT1: 2 holes and 4 holes (FRN) selectable, BU1: 4 holes (SWE) Punch Paper Weight: 52-300 gsm Punch Paper Size: 2 holes: A3, A4, A4R, Free size (182 x 182 mm to 297 x 432.0 mm excluding 203 x 257 mm to 297 x 270 mm) 4 holes: A3, A4, Free size (257 x 182 mm to 297 x 432 mm)
2/4 Hole Puncher Unit	(Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1) Two or Four Holes Punch Hole type: BT1: 2 holes and 4 holes (FRN) selectable, BU1: 4 holes (SWE) Punch Paper Weight: 52-300 gsm Punch Paper Size: Free size (182 x 182 mm to 297 x 432.0 mm excluding 203 x257 mm to 297 x 270 mm) 4 holes: A3, A4, Free size (257 x 182 mm to 297 x 432 mm)
4 Hole Puncher Unit	(Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1) Two or Four Holes Punch Hole type: BT1: 2 holes and 4 holes (FRN) selectable, BU1: 4 holes (SWE) Punch Paper Weight: 52-300 gsm Punch Paper Size: 2 holes: A3, A4, A4R, Free size (182 x 182 mm to 297 x 432.0 mm excluding 203 x 257 mm to 297 x 270 mm) 4 holes: A3, A4, Free size (257 x 182 mm to 297 x 432 mm)

Staple Cartridge

STAPLE-N1 – for Stapling (3 x 5,000 pcs) (for Staple Finisher-AG1 and Booklet Finisher-AG1)

STAPLE-P1 – for Saddle Stitching (2 x 5,000 pcs) (for Booklet Finisher-AG1)

STAPLE CARTRIDGE-X1 – For Stapling (3 x 5,000 pcs) (Staple Finisher-AC1/2 and Booklet Finisher-AC1/2)

STAPLE CARTRIDGE-Y1 – For saddle stitching (2 x 2,000 pcs) (for Booklet Finisher-AC1/2)

Toner Cartridge/s

TONER T01 BK/C/M/Y

imagePRESS V900 Series
