imageFORCE C3150 Series
imageFORCE C3150 Series
High-Performance Printing for Diverse Business Needs
imageFORCE C3150 is designed for scalability and versatility, making it an ideal choice for businesses handling diverse document types and varying volumes.
From high-speed scanning to efficient processing of compact documents such as business cards, users can select the optimal configuration to streamline digitisation and maintain smooth workflows.
Equipped with D² Exposure technology, the imageFORCE C3150 delivers exceptional image quality with resolutions up to 4,800 × 2,400 dpi. Its flexible paper capacity, ranging from 1,200 to 6,350 sheets, supports a wide range of requirements, ensuring consistent and uninterrupted operations.
Description
Features
Minimise Downtime, Maximise Productivity
imageFORCE C3150 is designed for peak performance, featuring smart maintenance tools and durable components that minimise downtime and maximise operational efficiency.

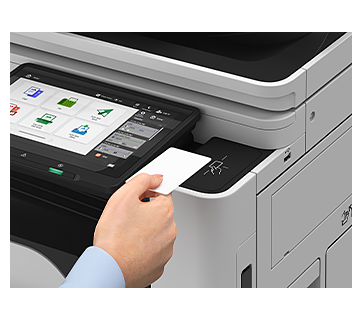

Robust Security for Peace of Mind
imageFORCE C3150 safeguards sensitive data with robust security features, including user authentication, data encryption, and secure print release. Firmware integrity checks further protect against unauthorised access, ensuring your print information remain secure and compliant.
Built Responsibly for a Sustainable Future
imageFORCE C3150 is designed with sustainability in mind, featuring up to 30% recycled plastic, eco-conscious packaging, and reduced energy consumption.
Specifications
Specifications
Main Unit
Machine Type |
A3 Colour Multifunctional |
Processor |
Dual Core Processor |
Control Panel |
10.1-inch TFT LCD WSVGA Colour Touch panel |
| Memory | Standard: RAM: 5.0 GB |
| Storage | Standard: (SSD) 256 GB Optional: (SSD) 1 TB |
| Interface Connection | NETWORK Standard: 1000Base-T/100Base-TX/10Base-T Optional: Wireless LAN (IEEE 802.11a/b/g/n/ac/ax) OTHERS |
| Paper Supply Capacity (A4, 80 gsm) | Standard: 1,200 sheets 100-sheet Multi-purpose tray x1 550-sheet Paper cassette x2 Maximum: 6,350 sheets (with High Capacity Cassette Feeding Unit-G1 + Paper Deck Unit-F3) |
| Paper Output Capacity (A4, 80 gsm) | Maximum: 3,450 sheets (with Staple Finisher-AH1 or Booklet Finisher-AH1 and Copy Tray-T2) |
| Supported Media Types | Multi-purpose Tray: Thin, Plain, Recycled, Colour, Heavy, Coated*1, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Envelope Upper Cassette: Lower Cassette: |
| Supported Media Sizes | Multi-purpose Tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm Free size: 100.0 x 148.0 mm to 304.8 x 457.2 mm Envelopes: COM 10 No.10, Monarch, DL, ISO-C5 Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mm Upper Cassette: Lower Cassette: |
| Supported Media Weights | Multi-purpose Tray: 52 to 300 gsm (257 to 300 gsm supported with Media Adjustment Kit) Upper/Lower Cassette: 52 to 256 gsm Duplex: 52 to 220 gsm |
| Warm-up Time | Quick Startup Mode: 4 Seconds or less*5 From Power On: 10 seconds or less*6 From Sleep Mode: 10 Seconds or less |
| Dimensions (W x D x H) | With Platen Cover-Y3: 565 x 745 x 788 mm With Single Pass DADF-E1: 565 x 745 x 897 mm With Single Pass DADF-F1: 565 x 745 x 862 mm |
| Installation Space (W x D) | Basic: 978 x 1,141 mm (with Single Pass DADF-E1 + right door & multi-purpose tray opened + paper cassette opened) 978 x 1,141 mm (with Single Pass DADF-F1 + right door & multi-purpose tray opened + paper cassette opened) Fully Configured: |
| Weight*7 | With Platen Cover-Y3: Approx. 79 kg With Single Pass DADF-E1: Approx. 92 kg With Single Pass DADF-F1: Approx. 85 kg |
Print Speed (BW and CL) |
1-sided: Up to 50 ppm (A4, A5R), Up to 25 ppm (A3), Up to 45 ppm (A5, A6R), Up to 30 ppm (A4R) 2-sided: Up to 50 ppm (A4), Up to 45 ppm (A5R), Up to 25 ppm (A3), Up to 30 ppm (A4R) |
Print Resolution (dpi) |
4,800 x 2,400 |
Page Description Languages |
Standard: UFR II, PCL6/PCL5 Optional: Adobe PostScript 3 |
| Direct Print | Supported file types: PDF, EPS, TIFF/JPEG, and XPS |
| Printing from Mobile and Cloud | AirPrint, Mopria®, IPP Everywhere, Canon PRINT, uniFLOW Online, Universal Print and Cloud Connector
A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. |
| OS Standard Printing | Android//Windows® 11/Chrome OS/macOS (11.2.2 or later)/iOS (15.2 or later)/iPadOS |
| Fonts | PS fonts: 136 Roman PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*8 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*9 |
| Operating System | UFRII: Windows® 11, Server 2016/Server 2019/Server 2022/Server 2025, macOS (10.14 or later)
PCL: Windows® 11, Server 2016/Server 2019/Server 2022/Server 2025 PS: Windows® 11, Server 2016/Server 2019/Server 2022/Server 2025, macOS (10.14 or later) PPD: Windows® 11, macOS (10.15 or later) |
Copy
Copy Speed (BW and CL) |
1-sided: Up to 50 ppm (A4, A5R), Up to 16 ppm (A3), Up to 45 ppm (A5, A6R), Up to 22 ppm (A4R) 2-sided: Up to 50 ppm (A4), Up to 30 ppm (A5R), Up to 12 ppm (A3), Up to 22 ppm (A4R) |
First-Copy-Out Time (A4, BW/CL) |
Approx. 4.2 / 5.5 seconds or less |
Copy Resolution (dpi) |
600 x 600 |
| Multiple Copies | Up to 999 copies |
| Copy Density | Automatic or Manual (9 Levels) |
| Magnification | Variable zoom: 25% to 400% (1% Increments) |
Scan
Type |
Standard: Colour Platen Optional: Platen Cover-Y3, Single Pass DADF-E1*10 or Single Pass DADF-F1*10 [2-sided to 2-sided (Automatic with DADF)] DADF: Duplexing Automatic Document Feeder |
Document Feeder Paper Capacity (80 gsm) |
Single Pass DADF-E1: Up to 200 sheets Single Pass DADF-F1: Up to 100 sheets |
Document Feeder Acceptable Paper Weight |
Document Feeder media weight:
Single Pass DADF-E1: Single Pass DADF-F1: |
| Supported Media Sizes | Platen scanning size: Up to 297.0 x 431.8 mm
Single Pass DADF-E1: Single Pass DADF-F1: |
| Scan Speed (ipm, A4) | Single Pass DADF-E1: 1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy) 2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy) Single Pass DADF-F1: |
| Scan Resolution (dpi) | 600ｘ600 |
| Pull Scan Specifications | Color Network ScanGear 2 for both TWAIN and WIA
Supported OS: Windows® 11/Server 2016/Server 2019/Server 2022/Server 2025 |
Send
Destination |
Standard: E-mail/Internet FAX (SMTP*11), SMB, FTP, WebDAV, Mail Box. Optional: Super G3 FAX, IP Fax |
Address Book |
LDAP (2,000)/Local (1,600)/Speed dial (200) |
Communication Protocol |
File: FTP (TCP/IP), SMB3.1.1 (TCP/IP), WebDAV E-mail/I-Fax: SMTP, POP3 |
| File Format | TIFF (MMR), JPEG, PDF (Compact, Searchable, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word) |
Fax
Maximum Number of Connection Lines |
2 |
Modem Speed |
Super G3: 33.6 kbps G3: 14.4 kbps |
Compression Method |
MH, MR, MMR, JBIG |
| Resolution (dpi) | 400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal) |
| Sending / Receiving Size | Sending: A3, A4, A4R, A5*12, A5R*12, A6R*12, B4, B5*13, B5R*12 Receiving: A3, A4, A4R, A5, A5R, B4, B5, B5R |
| FAX Memory | Up to 30,000 pages (2,000 jobs) |
| Speed Dials | Max. 200 |
| Group Dials / Destinations | Max. 199 dials |
| Sequential Broadcast | Max. 256 addresses |
| Memory Backup | Yes |
Store
Mail Box (Number Supported) |
100 User Inboxes 1 Memory RX Inbox 50 Confidential Fax Inboxes Maximum 10,000 Pages (2,000 jobs) Stored |
Advanced Box |
Communication Protocol: SMB or WebDAV Supported Client PC: Windows® 10/11 Concurrent Connections (Max.): SMB: 64, WebDAV: 3 |
Advanced Box Available Disc Space |
Standard: 16 GB (With option: Max. 480 GB) |
| Advanced Box Features | Authentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore |
Security
Authentication and Access Control |
User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online/uniFLOW*14(PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Microsoft Entra ID Authentication (Password Login, Card Login), Two-Factor Authentication at LUI/RUI, Access Management System (Access Control) |
Document Security |
Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*14), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Secure Watermark |
Network Security |
TLS 1.3 (FIPS140-3), IPSec (FIPS140-3), IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), WPA3 support (Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Space in the MFP, Scan and Send -Virus Concerns for E-mail Reception |
| Device Security | Protecting SSD Data [SSD Data Encryption (FIPS140-3), SSD Lock], Standard SSD Initialize, Initialize (NIST 800-88 PURGE LEVEL), Trusted Platform Module (TPM 2.0), Job Log Conceal Function, Protecting MFP Software Integrity: Verify System at Startup (NIST SP800-193: Protection), Checking MFP Software Integrity & Platform Firmware Resiliency: Automatic System Recovery (NIST SP800-193: Recovery), Runtime Intrusion Detection: Trellix Embedded Control, HCD-PP Common Criteria Certification (Pending Confirmation) |
| Device Management and Auditing | Administrator Password, Digital Certificate And Key Management, SAN certificates, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting |
Environmental
Operating Environment |
Temperature: 10 to 30 ºC Humidity: 20 to 80% RH (Relative Humidity) |
Power Source |
220-240 V, 50/60 Hz, 10 A |
Power Consumption |
Maximum: Approx. 1,800 W Sleep mode: Approx. 0.5 W*15 |
Consumables
Toner Cartridges |
NPG-1007 Toner BK/C/M/Y NPG-1007L Toner C/M/Y |
Toner Yield (Estimated @5% Coverage) |
NPG-1007 BK: 36,000 pages NPG-1007 C/M/Y: 19,000 pages NPG-1007L C/M/Y: 2,500 pages |
Software and Printer Management
Tracking and Reporting |
uniFLOW Online |
Remote Management Tools |
iW Enterprise Management Console Remote Distribution & Management Service Monitoring Service |
Scanning Software |
Color Network ScanGear 2 |
| Optimisation Tools | Canon Driver Configuration Tool |
| Platform | MEAP (Multifunctional Embedded Application Platform) |
Paper Supply Options
Cassette Feeding Unit-AZ1 |
Paper Capacity: 2 x 550 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, custom size: 105.0 x 148.0 mm to 304.8 x 457.2 mm Paper Weight: 52 to 256 gsm |
High Capacity Cassette Feeding Unit-G1 |
Paper Capacity: 2,450 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead Paper Size: A4 Paper Weight: 52 to 256 gsm |
Paper Deck Unit-F3 |
Paper Capacity: 2,700 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Colour, Pre-punched, Letterhead Paper Size: A4, B5 Paper Weight: 52 to 105 gsm |
Output Options*16
Inner 2way Tray-M1 |
Tray Capacity (with 80 gsm paper) A4, A5, A5R, A6R, B5, B5R: 100 sheets SRA3, A3, A4R, B4: 50 sheets Paper Weight: 52 to 300 gsm |
Copy Tray-T2 |
Capacity (with 80 gsm paper) A4, A5R, B5, B5R: 100 sheets A3, A4R, B4: 75 sheets Paper Weight: 52 to 220 gsm |
Inner Finisher-N1 |
Tray Capacity (with 80 gsm paper)
Upper Tray: Lower Tray: Paper Weight: 52 to 300 gsm Staple Position: Corner, Double Staple Capacity (52 to 90 gsm): Eco Staple (A3, A4, B4, B5): Staple On Demand: Approx. 40 sheets (80 gsm) |
| Staple Finisher-AH1 | Tray Capacity (with 80 gsm paper):
Upper Tray: Lower Tray: Paper Weight: Staple Position: Corner, Double Staple Capacity Staple On Demand: 50 sheets (52 to 90 gsm) |
| Booklet Finisher-AH1 | (Includes the above Staple Finisher-AH1 basic staple specifications)
Saddle Stitch Paper Size: A3, A4R, B4 Saddle Stitch Staple Capacity: 20 sheets x 10 sets (52 to 81.4 gsm) (including 1 cover sheet 52 to 256 gsm) Non Staple Folded Bunch Capacity: Up to 3 sheets (52 to 105 gsm) |
| Inner 2/3 Hole Puncher-D1 | (Requires the Inner Finisher-N1)
Two or Three Holes |
| Inner 2/4 Hole Puncher-D1 | (Requires the Inner Finisher-N1)
Two or Four Holes |
| 2/3 Hole Puncher Unit-A1 | (Requires either the Staple Finisher-AH1 or Booklet Finisher-AH1)
Two or Three Holes |
| 2/4 Hole Puncher Unit-A1 | (Requires either the Staple Finisher-AH1 or Booklet Finisher-AH1)
Two or Four Holes |
- 257-300 gsm requires Media Adjustment Kit.
- Envelope Feeder Attachment Kit B (standard) is required except ISO-C5.
- Envelope Feeder Attachment Kit A (standard) is required.
- Envelope Attachment A (standard) is required.
- Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display.
- Time from device power-on, until copy ready (not print reservation).
- Including regular toner.
- Optional PCL International Font Set-A1 is required.
- Optional Barcode Printing Kit-D1 is required.
- Multi-sheet Feed Detection is supported.
- Available OAuth 2.0 authentication method on Microsoft 365 and Google Workspace.
- Sent as A4.
- Sent as B4 short.
- Optional.
- 0.5 W is not available in all circumstances due to certain settings.
- Paper capacity may vary with different paper type/size.
