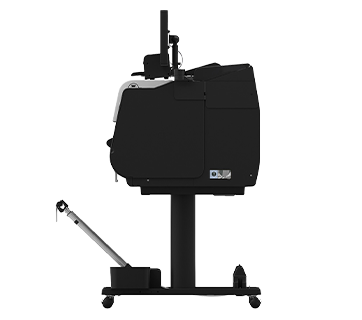

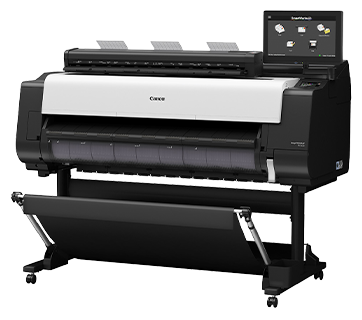

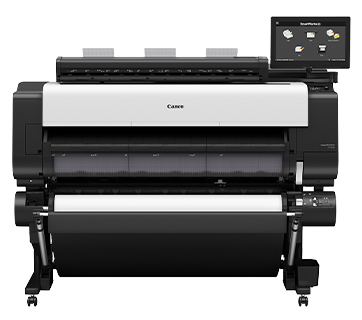

Elevating the benchmark for quality
The 44″ printer is designed for businesses that demand advanced productivity, reliable quality and streamlined workflow. With dual roll feeding and impressive media handling capabilities, the TX-5420 is ideal for printing CAD drawings and posters.
Description
Features
Fast Print Speed
The TX series realised faster throughput during continuous printing by optimising the pre-processing of print data, process of media cutting and media transport. Pre-print operation and print spooling have been optimised to achieve faster first print from standby or sleep mode.

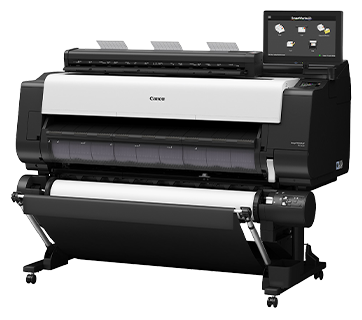

Productivity at Its Peak
Dual-roll feeding unit enables users to load up to two rolls of media, reducing the frequency of switching between different media types or sizes in high volume printing. Optional stacker supports stacking of up to 100 A0 size sheets, while the sub ink tank system allows empty ink tanks to be replaced while the printer continues to print, maximising productivity.
Smart Roll Paper Set
All models are equipped with an advanced Smart Roll Paper Set function that automatically detects paper feed and type and estimates the remaining paper quantity. The speed-up of the paper feeding process reduces the time it takes to load the roll paper.
Specifications
Specifications
Printer
|
Printer Type |
5-Colour 44″ (1,118 mm) |
|
Number of Nozzles |
15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each） |
|
Maximum Print Resolution |
2,400 × 1,200 dpi |
|
Nozzle Pitch |
1,200 dpi (2 lines) |
|
Line Accuracy*1 |
± 0.1% or less |
|
Minimum Ink Droplet Size |
5 pl |
|
Ink Capacity |
Sales Ink: 160 ml / 330 ml / 700 ml (MBK, BK, C, M, Y) |
|
Ink Type |
Pigment Ink |
|
Printer Language |
SG Raster (Swift Graphic Raster) |
|
Printing Solutions |
Direct Print Plus, CPP PRISMAproduce Tech, Easy-PhotoPrint Editor, Canon PRINT (Mobile), Canon Print Service (Mobile), Free Layout Plus, PosterArtist Wndows/Lite/Web |
|
Management Solutions |
Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box |
|
Standard Interfaces (Built-in) |
USB A Port: USB B Port (Series B, 4 pins): Gigabit Ethernet: Wireless LAN: |
|
Memory |
Standard: 128 GB |
|
Hard Disk |
500 GB (Encrypted) |
Print Speed*3
|
Plain Paper |
|
|
CAD Drawings, A0 |
33 sec [Fast (Custom Q5)] |
|
Poster, A0 |
35 sec [Fast (Custom Q5)] |
|
Heavyweight Coated Paper HG |
|
|
Poster, A0 |
1 min 30 sec [Fast] |
|
Glossy Photo Paper HG 170 |
|
|
Poster, A0 |
2 min 56 sec [Fast] |
Media Handling
|
Media Feed and Output |
|
|
Roll Paper (Single) |
Front Load, Front Output |
|
Cut Sheet |
Front Load, Front Output*4 |
|
Media Width (Roll / Cut Sheet) |
152.4 ～ 1,118 mm |
|
Media Thickness (Roll / Cut Sheet) |
0.07 ～ 0.8 mm |
|
Min. Printable Length |
|
|
Roll Paper |
101.6 mm*5 |
|
Cut Sheet |
203.2 mm |
|
Max. Printable Length |
|
|
Roll Paper |
18 m*6 |
|
Cut Sheet |
1.6 m |
|
Maximum Outer Roll Diameter |
170 mm or less |
|
Borderless Printing Width |
152.4 ～ 1,118 mm |
|
Margins (Recommended Area) |
|
|
Roll Paper |
Top: 20 mm, Bottom: 3 mm, Side: 3 mm |
|
Cut Sheet (Others) |
Top: 20 mm, Bottom: 20 mm, Side: 3 mm |
|
Margins (Printable Area) |
|
|
Roll Paper |
Top: 3 mm, Bottom: 3 mm, Side: 3 mm |
|
Roll Paper (Borderless Print) |
Top: 0 mm, Bottom: 0 mm, Side: 0 mm |
|
Cut Sheet (Others) |
Top: 3 mm, Bottom: 20 mm, Side: 3 mm |
Dimensions & Weight*7
|
Dimensions (W x D x H) |
|
|
Main Unit + Stand + Basket |
1,593 x 984 x 1,168 mm (Basket Open) |
|
Main Unit + Roll Unit + Stand + Stacker |
1,593 x 1,188 x 1,168 mm (Stacker Open) |
|
Roll Unit |
1,577 x 336 x 318 mm |
|
Weight |
|
|
Main Unit + Stand + Basket |
112 kg |
|
Main Unit + Roll Unit + Stand + Basket |
132 kg |
|
Main Unit + Roll Unit + Stand + Stacker |
144 kg |
|
Roll Unit |
20 kg |
|
Packaged Dimensions (W x D x H) |
|
|
Main Unit + Stand + Basket + Pallet |
1,820 x 915 x 1,042 mm |
|
Main Unit + Stand + Pallet |
1,820 x 915 x 1,042 mm |
|
Basket |
1,426 x 555 x 213 mm |
|
Stacker |
1,464 x 906 x 291 mm |
|
Roll Unit |
1,727 x 562 x 461 mm |
|
Packaged Weight |
|
|
Main Unit + Stand + Basket + Pallet |
168 kg |
|
Main Unit + Stand + Pallet |
164 kg |
|
Basket |
9 kg |
|
Stacker |
29 kg |
|
Roll Unit |
34 kg |
Power & Operating Requirements
|
Power Supply |
AC 100 – 240 V, 50 – 60 Hz |
|
Power Consumption |
|
|
Printing |
Approx. 87 W |
|
Sleep Mode |
Approx. 1.7 W |
|
Power Off |
Approx. 0.1 W |
|
Operating Environment |
|
|
Temperature |
15 ～ 30 ℃ |
|
Humidity |
10 ～ 80 % RH (no dew condensation) |
|
Acoustic Sound |
|
|
Acoustic Power*8 |
Operation: Approx. 69 dB |
|
Acoustic Pressure*8 |
Operation: Approx. 51 dB (A) |
Accessories
|
Roll Unit (Required) |
RU-42 |
|
Stacker (Optional) |
SS-41 |
|
2″/3″ Roll Holder (Optional) |
RH2-46 |
Consumables
|
Print Head |
PF-06 |
|
Cutter Blade |
CT-07 |
|
Maintenance Cartridge |
MC-30 |
|
Ink Tank |
Matte Black / Black / Cyan / Yellow: PFI-8110 (160 ml) / PFI-8310 (330 ml) / PFI-8710 (700 ml) |
Scanner*9
|
Technology |
Single Sensor, full width straight-line CIS with dual LED illumination |
|
Scan Width |
36″ (914 mm) |
|
Min. Scan Width |
6″ (150 mm) |
|
Max. Scan Length |
|
|
JPEG/PDF |
8 m |
|
TIFF |
15.2 m |
|
Max. Copy Speed*10 |
|
|
200 dpi |
6 ips (Colour) / 13 ips (Greyscale) |
|
300 dpi |
4 ips (Colour) / 8.6 ips (Greyscale) |
|
600 dpi |
2 ips (Colour) / 4.3 ips (Greyscale) |
|
Max. Scan Speed*10 |
|
|
200 dpi |
3 ips (Colour) / 13 ips (Greyscale) |
|
300 dpi |
2 ips (Colour) / 8.6 ips (Greyscale) |
|
600 dpi |
2 ips (Colour) / 4.3 ips (Greyscale) |
|
Optical Resolution |
1,200 dpi |
|
Max. Document Thickness*11 |
1 mm |
|
Document Handling |
Front Load, Rear Output*12 |
|
System Controller |
|
|
Hard Disk |
256 GB (Solid State Drive) |
|
Memory |
8 GB (DDR 4) |
|
Display |
15.6″ multi-touch colour display |
|
Software Included |
SmartWorks MFP V6 |
|
Scan Format |
PDF, Multipage PDF, JPEG, TIFF, DWF |
|
Dimensions (WxDxH)*13 |
1,056 x 251 x 156 mm |
|
Weight |
|
|
Scanner |
7.8 kg |
|
System Controller |
2.5 kg |
|
Power Consumption (Scanner) |
|
|
Operation*14 |
22.7 W (Colour) / 23.3 W (Greyscale) |
|
Sleep Mode |
0.2 W |
|
Standby |
12.4 W |
- User adjustments is required.
Printing environment and media must match those used for the adjustments.
Paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only. - Support IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP).
- Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Manual feed using media locking lever.
- For cloth, canvas, tracing paper and translucent matte film media, minimum printable length is 200 mm.
- Varies according to the OS and application.
- Include roll holder set, exclude ink and print head.
- Measured using ISO 7779 standard by using 36 inch plain paper, standard mode and line drawing / text mode.
- Scanner is manufactured by U.K. – based Global Scanning UK Ltd.
- The scan rate is proportional across the full range of resolutions supported by the scanner. Actual scan times and quoted top speeds will depend on the host performance and are not guaranteed for all media types. Scan times quoted are the maximum for true 200 x 200dpi image capture.
- Thicker documents must be flexible and the paper return guides removed and may require additional support. Some media should be scanned at reduced speeds. It is not possible to guarantee to be able to scan all media types and sizes.
- To return document to the front, use document return guides.
- Document return guides and paper tray folded.
- Power consumption is measured with scan resolution setting of 200 dpi.
