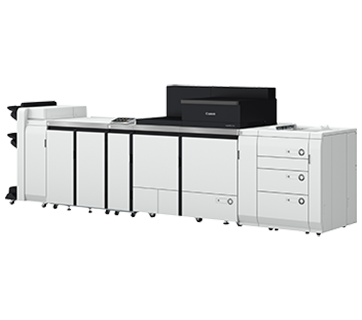

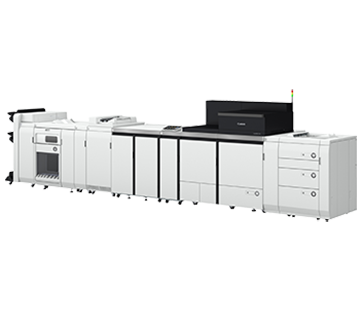

imagePRESS V1350

Machine Type

Digital colour cut-sheet Press

Core Functions

Print

Processor Speed

1.8 GHz Dual Core

Control Panel

10.1 inch

Memory

6 GB

Storage

SSD 1 TB

Interface Connection

Network
Standard: 1000Base-T/100Base-TX/10Base-T

Paper Input (Standard)

Standard: 1,000 sheets
Engine 1000 sheets x1,
POD Deck (1,000+1,000+2,000 sheets) x2

Paper Supply Capacity (A4, 80 gsm)

Maximum: 9,000 sheets

Finishing Capabilities

Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch (multiple patterns), Document Insertion, Fold (C-, Z-, Half, Double parallel, Accordion-Z fold), Trimming

Supported Media Types

Thin, Plain, Recycled, Colour, Thick Coated, Embossed, Bond, Transparency, Label, Pre Punched, Letterhead, Index, Bellum, Transparent film, Translucent film

Supported Media Sizes

SRA3S, A3S, A4L, A4S, B4S, B5L, B5S, 13″ x 19″S, 12″ x 18″S, 11″ x 17″S, LGLS, LTRL, LTRS, EXECL, 8KS, 16KL, 16KS,

Custom (182.0 x 182.0 mm – 330.0 x 450.0 mm)

Supported Media Weights

60 – 500 gsm

Dimensions (W x D x H)

2,691 x 1,165 x 1,456 mm

Installation Space (W x D)

5,218 x 1,875 (Engine, Deck, Finisher)

Weight

1,065 kg (Engine)

Printing Method

Colour Laser Beam Printing

Print Speed

CL: 135 ppm, BW: 130 ppm

Recommended Monthly Print Volume

Up to 1.2 million pages/A4

Maximum Monthly Print Volume

2.4 million pages/A4

Alignment Tolerance

0,5 mm

Print Resolution (dpi)

2,400 x 2,400 dpi

Page Description Languages

PS3, PCL6

Optional/Standard

Optional

Name

imagePRESS Server E9000

Print Resolution (dpi)

1200 x 1200, 600 x 600

Page Description Language(s)

PS3/PCL6

Memory

32 GB

Hard Disk Drive

480 GB (2.5″ SSD)
2 x 2 TB (3.5″ HDD)

Processor Speed

Intel Xeon 4214 Dual 3.20 GHz, 12Core

System

FS500Pro

Fonts

138 PS fonts

Supported Operating Systems

Windows 8.1 32 and 64 bit / Windows10 32 and 64 bit / Windows11 / Windows 2012 R2 64 bit only/ Windows Server 2016 64bit / Windows Server 2019 64bit / Windows Server 2022 64bit /MAC OS (10.14, 10.15, 11, 12)

Interface

2 x Ethernet (1000Base-T/100Base-TX/10Base-T), USB3.0 x 7

Network Protocols

TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port 9100, 802.1X, DHCP, DNS, NTP)

Direct Print

PDF2, EPS, TIFF, JDF1.8/JMF

VDP

PPML3.0, PDF/VT-1, PDF/VT1, VPS, FreeForm Plus

Fiery Print Controller Standard Features

Fiery Command WorkStation 6 / Paper Catalog / Fiery Spot-On / Fiery Remote Scan / Fiery Hot Folders & Virtual Printers

Fiery Print Controller Options

Fiery Impose / Fiery Compose / Fiery Impose and Compose / Fiery Graphic Arts Package / Removable HDD Kit

HW Platform

NX Premium

Dimensions (W x D x H)

235 mm x 464 mm x 527 mm

Weight

17 kg

Optional/Standard

Optional

Name

PRISMAsync for iPR V1350

Print Resolution (dpi)

1200 x 1200 dpi, 600 x 600 dpi

Page Description Language(s)

Postscript L3, PDF 2.0, APPE V5.7, PPML, IPDS (IS/3 standard compliant), PCL/PJL (transaction printing)

Memory

16 GB

Hard Disk Drive

500 GB + 1 TB

Processor Speed

Intel Core i7-8700

System

Mark 9

Fonts

139 Type
1 font for Roman languages; User import of PS fonts via Settings Editor; Optional Adobe Asian fonts: Japanese: 5 fonts, Chinese: 2 fonts for simplified Chinese, 1 font for traditional Chinese, Korean: 1 font for Korean

Supported Operating Systems

Windows 8.1 (32/64bit) and 10, Server 2012 R2, 2016, 2019 MacOS 10.15 (64 bit), MacOS 11, MacOS 12

Interface

Ethernet 10/100/1000 BaseT x 2 USB3.0 x 8

Network Protocols

TCP/IP, IPv6 Support, IPSec, NetBEUI/SMB (hotfolders, scan-to-file), secure IPP, SNMP V3, Job MIB, HTTP, HTTPS, Socket printing (port9100), LPR/LPD, JDF/JMF, LDAP, WebDav

Direct Print

PDF, JDF

VDP

PDF/VT-1, PPML

PRISMAsync Controller Standard Features

PS/PDF, Scheduler, Multiple Queues/hotfolders, Streaming, Accounting, Scanning, PPML, Remote Manager, Remote Service, Integrity checker, Windows 10 LTSC

PRISMAsync Controller Options

E-shredding, Advanced Colour Management, Advanced Impose, DocBox, Page Programming, DP Link, PCL6 TP, IPDS, PDF for IPDS

Dimensions (W x D x H)

200 mm x 430 mm x 420 mm

Weight

18 kg

Toner Cartridge/s

Toner T14 BK/C/M/Y

Staple Finisher

Staple Finisher AG1

Upper Tray (A) Capacity:
A4/A4R/A5R/A3/SRA3/13”x19” 1,000 sheets (52-300 gsm) / 200 sheets (301-350 gsm)

Lower Tray (B) Capacity:
A4 4,000 sheets (52-80 gsm) / 3,000 sheets (80.1-300 gsm)
A4R 2,000 sheets (52-300 gsm)
A3 1,500 sheets (52-300 gsm)
SRA3 1,000 sheets (52-300 gsm)
Any size 200 sheets (301-350 gsm)

Paper Weight: 52 to 350 gsm
Staple Position: Corner, Double
Staple Capacity:
A4: 100 sheets
A3/A4R: 50 sheets

Dimensions (W x D x H): 800 mm x 792 mm x 1,239 mm

Booklet Finisher

Booklet Finisher AG1

Tray Capacity / Paper Weight / Staple Position / Staple

Capacity: Same as Staple Finisher-YN2A
Booklet stitch paper size: A3, A4R, SRA3, 13”x19”, Free size (210 x 279.4 mm to 330.2 x 487.7 mm)
Booklet stitch paper weight: Body sheet 52-220 gsm, Cover sheet 64-300 gsm
Booklet stitch staple capacity: 25 sheets (52-80 gsm, include cover)

Dimensions (W x D x H): 800 mm x 792 mm x 1,239 mm
Weight: Approx. 180 kg
Power: 220-240V, 50-60Hz, 8A

Non Staple Folded Bunch Capacity: Up to 5 sheets (60 to 105 gsm)
Power Source: 100-240V, 50/60Hz, 2.8A
Dimensions (W x D x H): 896 x 765 x 1,040 mm (when the extension tray is extended)
Weight: Approx. 110 kg

Paper Folding

Supported Folding Type: Z-Fold, Accordion Z-Fold, C-Fold, Half-Fold, Double Parallel Fold

Acceptable Paper Type: Thin, Plain, Recycled, Colour, Bond

Acceptable Paper Sizes:
Z-Fold : A3, A4R, B4
Accordion Z-Fold, C-Fold, Half-Fold, Double Parallel Fold: A4R

Acceptable Paper Weight:
Z-Fold, Accordion Z-Fold, C-Fold, Half-Fold: 60 to 105 gsm
Double Parallel Fold: 60 to 90 gsm

Power Source: From the Finisher
Dimensions (W x D x H): 336 x 793 x 1,190 mm
Weight: Approx. 71 kg

Document Inserter

Number of trays: 2

Tray Capacity:
Upper Tray: 200 Sheets (80 gsm)
Lower Tray: 200 Sheets (80 gsm)

Acceptable Paper Type: Thin, Plain, Recycled, Colour, Thick, Pre-punched, Letterhead, Bond, Coated, Tab, Tracing, Textured

Acceptable Paper Sizes: SRA3, A3, A4, A4R, B4, B5, B5R,
Custom size (182.0 x 182.0 mm to 330.2 x 487.7 mm)

Acceptable Paper Weight: 60 to 300 gsm
Power Source: 100-240V/50/60Hz 1.0A
Dimensions (W x D x H): 336 x 793 x 1,407 mm (width excluding document tray)
Weight: Approx. 61 kg

Hole Puncher

(Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1)

Two or Four Holes
Punch Hole type:
BT1: 2 holes and 4 holes (FRN) selectable,
BU1: 4 holes (SWE)

Punch Paper Weight: 60-300 gsm
Punch Paper Size:
2 holes: A3, A4, A4R, Free size (182 x 182 mm to 297 x 432.0 mm excluding 203 x
257 mm to 297 x 270 mm)
4 holes: A3, A4, Free size (257 x 182 mm to 297 x 432 mm)

Booklet Trimmer

Requires Booklet Finisher-AF1

Trim Width: 2-28 mm
Trim Thickness: Up to 50 sheets (include cover)
Paper Weight: 60 to 300 gsm
Chip tray capacity: Approx. 5,000 sheets (Trim width 20 mm, A4, 80 gsm)
Dimensions (W x D x H): 2,095 mm (including joint, conveyor and output tray) x 790 mm x 1,040 mm
Weight: Approx. 178 kg (including conveyor and output tray)

Staple Cartridge

STAPLE-N1 – for Stapling (3 x 5,000 pcs) (for Staple Finisher-AG1 and Booklet Finisher-AG1)

STAPLE-P1 – for Saddle Stitching (2 x 5,000 pcs) (for Booklet Finisher-AG1)

Consumables

Toner T14 BK/C/M/Y
