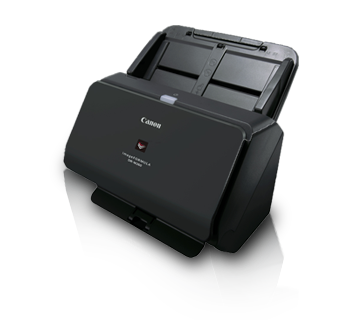

DR-M260

DR-M260

Powerful scanner featuring state-of-the-art image processing capabilities

The high-performance DR-M260 is specially tailored to handle the demands of efficient processing of scanned documents.

  • Feeder capacity: 80 sheets
  • Speed: up to 60ppm / 120ipm (2-sided)
  • Up to 600 dpi in scanning resolution
Categories: ,
Description

Description

Fast, High-quality scanning independent of PCs

A first in Canon, the DR-M260 incorporates a revolutionary DR Processor that delivers unparalleled image quality and scanning speed without the need to depend on the performance of personal computers.

User-friendly LCD Panel

Equipped with an intuitive LCD panel, DR-M260 provides users with a simple interface for quick operations. Users can monitor their scanning status and count with ease. In addition, up to 99 registered jobs with different combinations of scan modes and output destinations may be registered to provide users with maximum convenience

Enhanced image processing for accurate Optical Character Recognition (OCR)

Thanks to the image processing technology powered by the DR Processor, colour unevenness in the scanning process is minimised, thus delivering impressive image quality.

Specifications

Specifications

General

Bundled Software ISIS/TWAIN Driver, CaptureOnTouch, CapturePerfect, Kofax VirtualReScan Basic
Dimensions (W x D x H) Feed tray and eject tray closed: 285 × 254 × 231 mm
Feed tray and eject tray open : 285 x 652 x 367 mm
Ejection pockets
Interface SuperSpeed USB3.1 Gen1/Hi-Speed USB2.0
MICR
On-Board Jogger
Operating Environment Temperature: 10 – 35°C
Humidity: 20% to 80% RH
Supported Operating System Windows
Options / Consumables Flatbed Scanner Unit 102, Barcode Module, 2D code Module, Exchange Roller Kit (feed roller and retard roller), Carrier Sheet (Passport), Carrier Sheet (A4)
Power AC100 – 240 V
Power Consumption Scanning: 23 W,
Sleep mode: 1.4 W,
Power Turned OFF: less than 0.1 W
Weight Approx. 3.4 kg

Scanning Document

Feeding Method Automatic
Document thickness – Plain Paper Page separation mode:
Weight: 27 – 413 g/m2
Thickness: 0.04 – 0.49 mm

Non Separation Mode:
Weight: 27 – 413 g/m2
Thickness: 0.04 – 0.49 mm

Document thickness – Postcard
Document thickness – Business Card Weight: 380 g/m2 or less
Thickness: 0.45 mm
Document thickness – Card (ISO/IEC compliant) 1.4 mm or less
Document thickness – Passport 6 mm or less (including carrier sheet)
Feeding Capacity 80 sheets
Document size – Plain Paper (A4/LTR) Width: 50.8 – 216 mm,
Length: 54 – 356 mm
Document size – Long Document Mode Up to 5,588 mm (200dpi)
Document size – Postcard Width: 88.9 – 108 mm,
Length: 127 – 152 mm
Document size – Business card Width: 50 – 55 mm,
Length: 85 – 91 mm
Document size – Card (ISO/IEC compliant) 54 x 86 mm
(Horizontal feeding only. Embossed cards can be scanned)
Document size – Passport 88 x 125 mm (ISO standard)
When scanning, be sure to open the passport and insert it in the provided carrier sheet (for passports) beforehand.
Document size – Plastic card
Document size – Magnetic card

Scan

Light source LED (red, green and blue)
Maximum Resolution 600 dpi
Scan Resolution 150 x 150dpi / 200 x 200dpi / 240 x 240dpi / 300 x 300dpi / 400 x 400dpi / 600 x 600dpi
Scanner Element CIS
Scanner Type Desktop sheetfed scanner
Scanning Modes Black and white, Error diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, 256-level gray, 24-bit color
Scanning Side Simplex / Duplex
Scanning speed A4 / LTR, Portrait, 200dpi:
Black and White: 60ppm (simplex) / 120ipm (duplex)
Grayscale: 60ppm (simplex) / 120ipm (duplex)
Colour: 60ppm (simplex) / 120ipm (duplex)
Suggested Daily Volume (Scans) 7000
