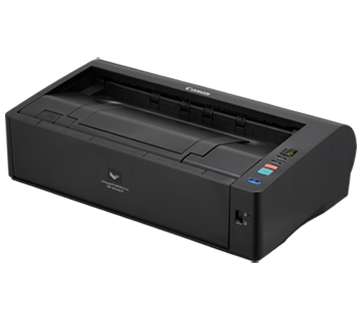

imageFORMULA DR-M1060II
imageFORMULA DR-M1060II
Compact A3 Desktop Scanner for Quick and Effortless Scanning
Engineered for high-volume mixed batch scanning, the imageFORMULA DR-M1060II is made to simplify your business’ document digitisation processes.
Description
Features
Compact Space-Saving Design
The U-turn path mode enables full-front operation while saving space when placed on countertops or tight spaces.
Fast and High-Quality Scanning
The DR-M1060II scanner offers impressive image quality and fast capture speeds that maximise productivity, allowing you to scan with the utmost confidence.
Versatile Media Handling
The scanner can handle media of a wide-range of textures and thicknesses, making it simple and quick to set up. With just a touch of a button, you can swiftly scan paper documents, receipts, IDs, and business cards.
Specifications
Specifications
Scan
|
Type |
Desktop Sheet-Fed Scanner |
|
Scanning Speed*1 |
|
|
Greyscale |
200 dpi: 60 ppm (Simplex) / 120 ipm (Duplex) |
|
Colour |
200 dpi: 60 ppm (Simplex) / 120 ipm (Duplex) |
|
Scanning Element |
Contact Image Sensor (CIS) |
|
Light Source |
LED |
|
Scanning Side |
Simplex / Duplex |
|
Scanning Modes |
Black and White, Error Diffusion, 256-level Greyscale, Advanced Text Enhancement, Advanced Text Enhancement II, 24-bit Colour |
|
Scanner Features |
Folio Scanning, Double Feed Release, |
|
Optical Resolution (Max.) |
600 dpi |
|
Output Resolution*2 |
100, 150, 200, 240, 300, 400, 600 dpi |
Media Handling
|
Document Size |
|
|
Plain Paper |
Width: 50.8 to 300 mm |
|
Business Card |
Width: 50.8 to 55 mm |
|
Card (ISO Standard) |
54 x 86 mm |
|
Document Thickness and Weight |
|
|
Plain Paper |
U-turn Path (Page Separation): 27 to 128 g/m² (0.04 to 0.15 mm) U-turn Path (Non-Separation): 27 to 164 g/m² (0.04 to 0.2 mm) Straight Path: 27 to 255 g/m² (0.04 to 0.3 mm) |
|
Business Card |
128 to 380 g/m² (0.15 to 0.45 mm) |
|
Card |
0.76 mm or less |
|
Auto Document Feeder (ADF) Capacity*3 |
80 sheets |
Connectivity & Software
|
Interface |
USB 2.0 |
|
Software |
ISIS / TWAIN / WIA Drivers, CaptureOnTouch |
General
|
Power Requirements |
AC 100 – 240 V (50 / 60 Hz) |
|
Power Consumption |
|
|
Scanning (Max.) |
32.5 W |
|
Sleep Mode |
1.9 W |
|
With Power Switched OFF (Max.) |
0.1 W |
|
Operating Environment |
|
|
Temperature |
10 to 32.5°C |
|
Humidity |
20 to 80% RH |
|
Dimensions (W x D x H) |
|
|
When Trays Are Closed |
424 × 246 × 120 mm |
|
When Trays Are Opened |
424 × 440 × 210 mm |
|
Weight (Approx.) |
6.1 kg (Without AC adapter) |
Consumables & Accessories
|
Options / Consumables |
Exchange Roller Kit |
|
Accessories |
Flatbed Scanner Unit 102 |
- Based on A4 landscape document size.
- Primary scan lines x secondary scan lines.
- Size: A3 or smaller (same type document only), paper weight: 70 to 100 g/m², temperature: 15 to 27.5°C, humidity: 25 to 75% RH, total thickness: 10 mm or less.
