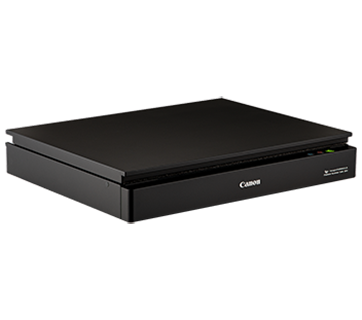

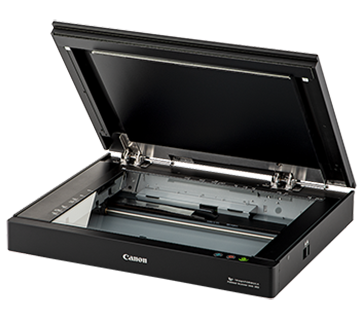

Flatbed Scanner Unit 202
Flatbed Scanner Unit 202
Eco-friendly design with seamless usability
Designed to complement Canon’s DR-series document scanners, the Flatbed Scanner Unit 202 (FSU 202) option offers users the flexibility to achieve high quality scans even for A3 documents.
* The Flatbed Scanner Unit 202 needs to be used with a DR-series scanner; it cannot be used independently.
Description
Features
Effortless Connectivity
Easily connect the flatbed scanner unit to your PC or laptop through a simple USB connection. Scan documents while the Canon DR-series scanner is also connected and effortlessly combine the images as a single file, enjoying the convenience of a single operation.
Sustainable Option
The FSU 202 reduces plastic usage in its exterior design by up to 90% while operating with lower power consumption, leading to reduced environmental footprint.
Versatile Media Size Support
Scan a wide array of documents, from books, magazines to passports up to A3 in size, to meet the different digitisation needs.
Specifications
Specifications
Specification
|
Type |
Desktop flatbed scanner |
|
Scanning Document Size |
|
|
Width: |
297.4 mm |
|
Length: |
432 mm |
|
Scanning Sensor |
CIS |
|
Light Source |
LED |
|
Scanning Side |
Simplex |
|
Scanning Modes |
Black and White, Error Diffusion, 256-level Grayscale,24-bit Colour, Advanced Text Enhancement, Advanced Text Enhancement II, Active Threshold |
|
Resolution |
100 x 100 dpi / 150 x 150 dpi / 200 x 200 dpi / 240 x 240 dpi / 300 x 300 dpi / 400 x 400 dpi / 600 x 600 dpi / 1,200 x 1,200 dpi |
|
Scanning Speed*1 |
|
|
24-bit Colour |
600 dpi: 11 sec |
|
B&W / Grayscale |
600 dpi: 9 sec |
|
Interface |
USB 3.2 Gen 1×1 / USB 2.0 |
|
External Dimensions |
570 mm x 451 mm x 111 mm |
|
Weight (Without AC Adapter) |
Approximately 9.8 kg |
|
Power Supply |
DC 24 V, 2.0 A |
|
Power Consumption |
|
|
Scanning: |
Maximum 15.7 W |
|
Sleep Mode: |
Maximum 1.9 W |
|
Power Off: |
Maximum 0.1 W |
|
Operating Environment |
|
|
Temperature: |
10°C to 32.5°C |
|
Humidity |
20% to 80% RH |
- Conditions: Core i7-6700 3.4 GHz CPU, 16 GB or more memory USB 3.2 Gen 1×1, A3 document size.
