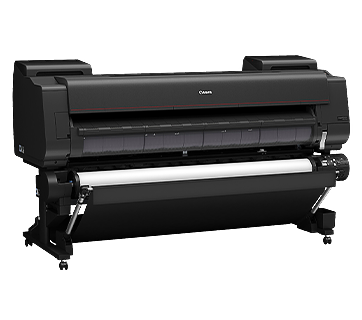

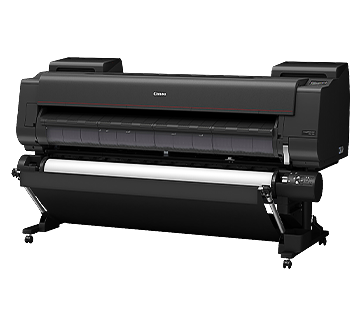

imagePROGRAF PRO-566

Timeless Quality for Every Print

Stunning images using new 12-colour pigment ink with improved black density is displayed on every print. Greater print expressions of colour that professional photographers can desire. Better preservation of prints with PRO Series, thanks to enhanced light and scratch resistance! New printer design enables easier print operations and saves time in print media setup.

Categories: Digital Copiers, imagePROGRAF

Description
Specifications

Description

Features

Deep Black with Visibility on Fine Details in Dark Areas

More expressive prints with deep black and fine details in dark areas can be reproduced and visible on glossy/semi-glossy and as well as on fine art media.

User Friendly Design and Operation

Interior lighting enables users to check on the printing and alerts users for ink tank replacement. Smart roll system automates roll paper feeding, detects media types, and tracks remaining amount seamlessly. Translucent roll cover enables checking on roll media size easily.

Enhanced Durability for Prints

LUCIA PRO II ink improves the light resistance and preserves vibrant colours for extended storage, preventing fading. Rest assured about the safety of photos and posters on glossy media types, as the printer’s scratch-resistant capability shields them from potential damage during printing and handling.

Specifications

Printer Type	12 Colour, 60“ / 1,524 mm
Number of Nozzles	18,432 nozzles (1,536 nozzles x 12 colours)
Maximum Print Resolution	2,400 x 1,200 dpi
Nozzle Pitch	600 dpi × 2
Line Accuracy	± 0.1 % or less
Minimum Ink Droplet Size	Minimum 4 picolitre per colour
Ink Capacity	Sales Ink: 160 ml / 330 ml / 700 ml Bundled Starter Ink: 330 ml
Ink Type	Pigment Ink: Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Grey, Photo Grey, Red, Blue, Chroma Optimizer
Printer Languages	SG Raster (Swift Graphic Raster), PDF (Ver. 1.7), JPEG (Ver. JFIF1.02)
Printing Solutions	Direct Print Plus, Easy-PhotoPrint Editor, Canon PRINT, Canon Print Service, Free Layout Plus, PosterArtist Windows/Lite/Web, Professional Print & Layout
Management Solutions	Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Toolbox
Standard Interfaces (Built-in)	USB A Port: USB Memory (Direct Print) USB B Port: Built in Hi-Speed USB Full Speed (12 Mbit/sec), Hi-Speed (480 Mbit/sec), Bulk Transfer Series B (4 pins) Gigabit Ethernet: IEEE802.3ab (1000 Base-T) IEEE802.3u (100 Base-TX) IEEE802.3(10 Base-T) SNMP (Canon-MIB) HTTP TCP/IP (IPv4/IPv6) FTP Wireless LAN: IEEE802.11n/g/b WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) WPA3-SAE (AES) WPA-EAP (AES) WPA2-EAP (AES) WPA3-EAP (AES)
Standard Memory	3 GB
Hard Disk	500 GB (Encrypted)

Heavyweight Coated Paper HG (A0)	2 min 49 sec
Glossy Photo Paper HG (A0)	5 min 35 sec

Packaged Dimensions

(W x D x H)

Weight

Main Unit + Pallet:

2,227 x 915 x 1,025 mm

222 kg

Roll Unit:

2,133 x 562 x 461 mm

42 kg

Dimensions (W x D x H)

Weight (including Roll Holder Set, excluding ink and print head)

Main Unit:

1,999 × 734 × 628 mm

Approx. 124 kg

Main Unit + Roll Unit + Stand + Basket:

1,999 × 984 × 1,168 mm (Basket Opened)

1,999 × 766 × 1,168 mm (Basket Closed)

Approx. 171 kg

Media Feed and Output (Single Roll)	Roll Paper: Front Load, Front Output One Roll, Front Load, Front Output (Default) Cut Sheet: Front Load, Front Output (Manual Feed using Media Locking Lever)
Media Width (Roll / Cut Sheet)	152.4 ~ 1,524 mm
Media Thickness (Roll / Cut Sheet)	0.07 ~ 0.8 mm
Minimum Printable Length	Roll Paper: 101.6 mm (exclude Cloth and Canvas media) Cut Sheet: 203.2 mm
Maximum Printable Length	Roll Paper: 18 m (varies according to OS and application) Cut Sheet: 1.6 m
Maximum Outer Roll Diameter	170 mm or less
Borderless Printing Width (Roll Only)	Recommended: 515 mm (B2), 728 mm (B1), 1,030 mm (B0), 594 mm (A1), 841 mm (A0), 10″, 14″, 17″, 24″, 36″, 42″, 44″, 50″, 54″, 60″ Printable: 257 mm (B4), 297 mm (A3), 329 mm (A3+), 420 mm (A2), 6″, 8″, 12″, 16″, 20″, 22″, 30″, 34”, 300 mm, 500 mm, 600 mm, 800 mm, 1,000 mm Other than above, free size borderless printing is supported on only roll paper by user definition.

Power Supply	AC 100 – 240 V, 50 – 60 Hz
Power Consumption	Printing: 85 W or less Sleep Mode: 1.7 W or Power Off: 0.1 W or less
Operating Environment	Temperature: 15 ~ 30°C Humidity: 10 ~ 80% RH (no dew condensation)
Acoustic Sound	[Acoustic Pressure] Operation: Approx. 48 dB (A) (Glossy Paper – Image; Print Priority – Standard) Standby: Approx. 35 dB (A) or less [Acoustic Power] Operation: Approx. 66 dB or less (Glossy Paper – Image; Print Priority – Standard) (Measured using ISO 7779 standard)

Roll Unit (Required)	RU-63
2″/3″ Roll Holder (Optional)	RH2-66
