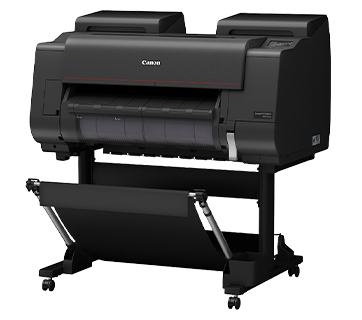

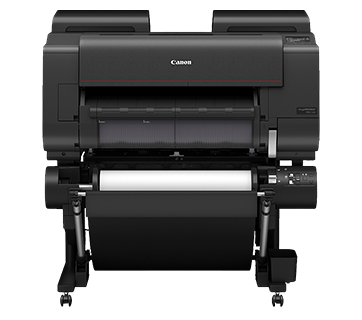

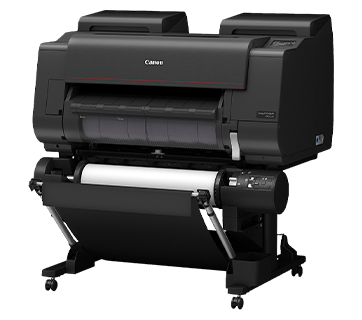

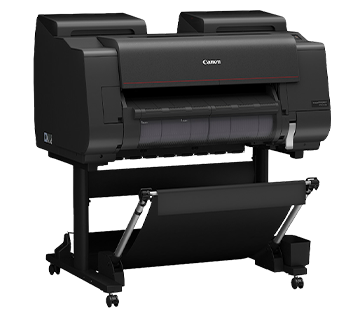

imagePROGRAF PRO-526

Printer Type

12 Colour, 24” / 610 mm

Number of Nozzles

18,432 nozzles (1,536 nozzles x 12 colours)

Maximum Print Resolution

2,400 x 1,200 dpi

Nozzle Pitch

600 dpi × 2

Line Accuracy

± 0.1 % or less

Minimum Ink Droplet Size

Minimum 4 picolitre per colour

Ink Capacity

Sales Ink: 160 ml / 330 ml / 700 ml

Bundled Starter Ink: 160 ml

Ink Type

Pigment Ink: Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Grey, Photo Grey, Red, Blue, Chroma Optimizer

Printer Languages

SG Raster (Swift Graphic Raster), PDF (Ver. 1.7), JPEG (Ver. JFIF1.02)

Printing Solutions

Direct Print Plus, Easy-PhotoPrint Editor, Canon PRINT, Canon Print Service, Free Layout Plus, PosterArtist Windows/Lite/Web, Professional Print & Layout

Management Solutions

Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Toolbox

Standard Interfaces (Built-in)

USB A Port:

USB Memory (Direct Print)

USB B Port:

Built in Hi-Speed USB

Full Speed (12 Mbit/sec), Hi-Speed (480 Mbit/sec), Bulk Transfer

Series B (4 pins)

Gigabit Ethernet:

IEEE802.3ab (1000 Base-T)

IEEE802.3u (100 Base-TX)

IEEE802.3(10 Base-T)

SNMP (Canon-MIB)

HTTP

TCP/IP (IPv4/IPv6)

FTP

Wireless LAN:

IEEE802.11n/g/b

WPA-PSK (TKIP/AES)

WPA2-PSK (TKIP/AES)

WPA3-SAE (AES)

WPA-EAP (AES)

WPA2-EAP (AES)

WPA3-EAP (AES)

Standard Memory

3 GB

Hard Disk

500 GB (Encrypted)

Heavyweight Coated Paper HG (A0)

1 min 38 sec

Glossy Photo Paper HG (A0)

3 min 11 sec

Packaged Dimensions

(W x D x H)

Weight

Main Unit + Stand + Pallet:

1,324 x 912 x 1,139 mm

157 kg

Stand + Basket:

1,174 x 827 x 223 mm

Approx: 27 kg

Roll Unit:

1,244 x 562 x 461 mm

Approx: 26 kg

Dimensions (W x D x H)

Weight (including Roll Holder Set, excluding ink and print head)

Main Unit:

1,110 × 734 × 628 mm

Approx. 85 kg

Main Unit + Stand + Basket:

1,110 × 984 × 1,168 mm (Basket Opened）

1,110 × 766 × 1,168 mm (Basket Closed）

Approx. 102 kg

Media Feed and Output (Single Roll)

Roll Paper: Front Load, Front Output

One Roll, Front Load, Front Output (Default)

Cut Sheet: Front Load, Front Output

(Manual Feed using Media Locking Lever)

Media Width (Roll / Cut Sheet)

152.4 ~ 610 mm

Media Thickness (Roll / Cut Sheet)

0.07 ~ 0.8 mm

Minimum Printable Length

Roll Paper:

101.6 mm (exclude Cloth and Canvas media)

Cut Sheet:

203.2 mm

Maximum Printable Length

Roll Paper:

18 m (varies according to OS and application)

Cut Sheet: 1.6 m

Maximum Outer Roll Diameter

170 mm or less

Borderless Printing Width (Roll Only)

Recommended:

515 mm (B2), 594 mm (A1), 10″, 14″, 17″, 24″

Printable:

257 mm (B4), 297 mm (A3), 329 mm (A3+), 420 mm (A2), 6″, 8″, 12″, 16″, 20″, 22″

300 mm, 500 mm, 600 mm

Other than above, free size borderless printing is supported on only roll paper by user definition.

Power Supply

AC 100 – 240 V, 50 – 60 Hz

Power Consumption

Operating Environment

Temperature: 15 ~ 30°C

Humidity: 10 ~ 80% RH (no dew condensation)

Acoustic Sound

[Acoustic Pressure]

Operation: Approx. 46 dB (A)

(Glossy Paper – Image; Print Priority – Standard)

Standby: Approx. 35 dB (A) or less

[Acoustic Power]

Operation: Approx. 64 dB or less

(Glossy Paper – Image; Print Priority – Standard)

(Measured using ISO 7779 standard)

Printer Stand (Required)

SD-21

Roll Unit (Optional)

RU-23

2″/3″ Roll Holder (Optional)

RH2-29
