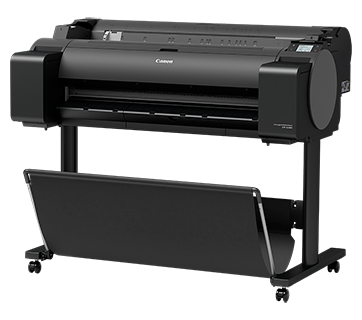

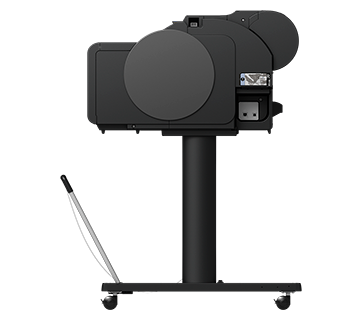

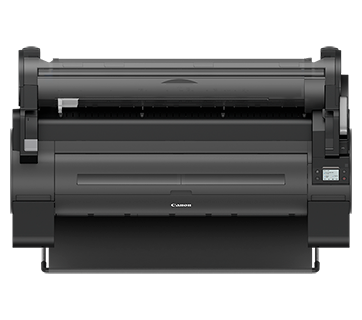

imagePROGRAF GP-5300
Original price was: $ 5,000.00.$ 4,000.00Current price is: $ 4,000.00.
imagePROGRAF GP-5300

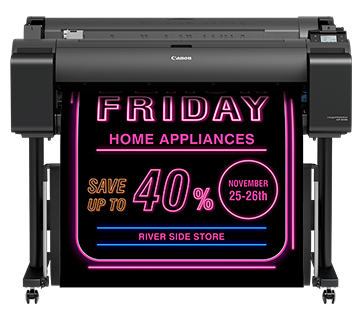

The World’s First Large Format Printer with Aqueous Pigment Fluorescent Ink
The 36” poster printer with PANTONE™2 calibration delivers wide colour gamut and vibrant colours to create compelling advertisements and posters enhanced by fluorescent colours.
Description
Features
Industry Standard Coverage
The GP-540 has been awarded the world’s first PANTONE-calibrated license for “PANTONE PASTELS & NEONS GUIDE Coated”, which includes fluorescent and pastel colours, in addition to 99% coverage of “PANTONE FORMULA GUIDE Solid Coated”, which is used in a wide range of applications such as printing and design.
1 PANTONE PASTELS & NEONS GUIDE Coated colour gamut coverage rate of GP-540 is 97% when using Photo Paper Pro Platinum with imagePROGRAF printer driver at [Poster/Photo (Fluorescent)] [Highest] (600 dpi).
2 PANTONE FORMULA GUIDE Solid Coated colour gamut coverage rate of GP-540 is 99% when using Photo Paper Pro Platinum with imagePROGRAF printer driver at [Poster/Photo (Fluorescent)] [Highest] (600 dpi).
Borderless Printing
Borderless printing can be achieved on standard and custom width for all supported media. The printer is also capable of three-sided edge-to-edge printing on various sizes that do not match the roll paper width. This allows more flexibility in borderless printing task as borderless print of various sizes can be produced from a single roll of media.
User Friendly Design and Operation
Sleek compact design with full front-accessible opeations allow for flush wall installation, taking up less space in the office. Files can be printed directly from USB drive, while built-in hard drive enables saved job to be reprinted without a computer.
Specifications
Specifications
Specifications
Printer
| Printer Type | 5-Colour + Fluorescent Pink, 36″ (914 mm) |
| Number of Nozzles | 15,360 nozzles (2,560 nozzles x 6 colours) |
| Maximum Print Resolution | 2400 × 1200 dpi |
| Nozzle Pitch | 1200 dpi (2 lines) |
| Line Accuracy*1 | ± 0.1% or less |
| Minimum Ink Droplet Size | 5 pl |
| Ink Capacity | Sales Ink: 130 ml / 300 ml (MBK, BK, C, M, Y, FP) Bundled Starter Ink: 90 ml (MBK, BK, C, M, Y, FP) |
| Ink Type | Pigment Ink |
| Printer Language | SG Raster (Swift Graphic Raster) PDF (Ver. 1.7) JPEG (Ver. JFIF1.02) |
| Printing Solutions | Direct Print Plus, Easy-PhotoPrint Editor, Canon PRINT Inkjet/SELPHY, Canon Print Service, Free Layout plus, PosterArtist Lite, imageRUNNER ADVANCE Direct Enlargement Copy |
| Management Solutions | Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Toolbox |
| Standard Interfaces (Built-in) | USB A Port: USB Memory (Direct Print for JPEG/PDF files) USB B Port (Series B, 4 pins): Gigabit Ethernet: Wireless LAN: |
| Standard Memory | 2 GB |
| Hard Disk | 500 GB |
Print Speed*2
| Plain Paper | |
| Poster/Photos, Fluorescent, A0 | 44 sec [Fast] 1 min 18 sec [Standard] |
| Heavyweight Coated Paper HG | |
| Poster/Photos, Fluorescent, A0 | 1 min 41 sec [Fast] 2 min 36 sec [Standard] |
| Glossy Photo Paper HG 170 | |
| Poster/Photos, Fluorescent, A0 | 6 min 19 sec [Standard] 9 min 41 sec [High] |
Media Handling
| Media Feed and Output | |
| Roll Paper | One Roll, Top Load, Front Output |
| Cut Sheet | Top Load, Front Output*3 |
| Media Width (Roll / Cut Sheet) | 203.2 ～ 917 mm |
| Media Thickness (Roll / Cut Sheet) | 0.07 ～ 0.8 mm |
| Min. Printable Length | |
| Roll Paper | 203.2 mm |
| Cut Sheet | 279.4 mm |
| Max. Printable Length | |
| Roll Paper | 18 m*4 |
| Cut Sheet | 1.6 m |
| Maximum Outer Roll Diameter | 150 mm or less |
| Borderless Printing Width (Roll paper only) |
203.2 ～ 917 mm |
| Margins (Recommended Area) | |
| Roll Paper | Top: 20 mm, Bottom/Side: 3 mm |
| Cut Sheet (Others) | Top/Bottom: 20 mm, Side: 3 mm |
| Margins (Printable Area) | |
| Roll Paper | Top/Bottom/Side: 3 mm |
| Roll Paper (Borderless Print) | Top/Bottom/Side: 0 mm |
| Cut Sheet (Others) | Top: 3 mm, Bottom: 20 mm, Side: 3 mm |
Dimensions & Weight*5
| Dimensions (W x D x H) | |
| Main Unit | 1289 x 748 x 439 mm |
| Main Unit + Stand + Basket (SD-33) | 1289 x 870 x 1060 mm (Basket Open) 1289 x 757 x 1060 mm (Basket Closed) |
| Weight | |
| Main Unit | 49 kg |
| Main Unit + Stand + Basket (SD-33) | 59 kg |
| Packaged Dimensions (W x D x H) | |
| Main Unit + Pallet | 1462 x 913 x 709 mm |
| Stand + Basket (SD-33) | 1362 x 824 x 268 mm |
| Main Unit + Stand + Basket (SD-33) + Pallet | 1462 x 1122 x 820 mm |
| Packaged Weight | |
| Main Unit + Pallet | 79 kg |
| Stand + Basket (SD-33) | 17 kg |
| Main Unit + Stand + Basket (SD-33) + Pallet | 102 kg |
Power & Operating Requirements
| Power Supply | AC 100 – 240 V, 50 – 60 Hz |
| Power Consumption | |
| Printing*6 | 74 W or less |
| Sleep Mode*6 | 2.0 W or less |
| Power Off | 0.3 W or less |
| Operating Environment | |
| Temperature | 15 ～ 30 °C |
| Humidity | 10 ～ 80 % RH (no dew condensation) |
| Acoustic Sound | |
| Acoustic Power*7 | Operation: Approx. 67 dB |
| Acoustic Pressure*7 | Operation: Approx. 49 dB (A) Standby: 35 dB (A) or less |
Accessories
| 2″/3″ Roll Holder (Optional) | RH2-35 |
Consumables
| Ink Tank | PFI-8120 (130 ml) / PFI-8320 (300 ml) Matte Black / Black / Cyan / Magenta / Yellow / Fluorescent Pink |
| Print Head | PF-07 |
| Cutter Blade | CT-08 |
| Maintenance Cartridge | MC-31 |
- User adjustments is required.
Printing environment and media must match those used for the adjustments.
Paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only. - Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Manual feed using media locking lever.
- Varies according to the OS and application.
- Include roll holder set, exclude ink and print head.
- Using wired LAN.
- Measured using ISO 7779 standard by using plain paper, poster and standard mode.
