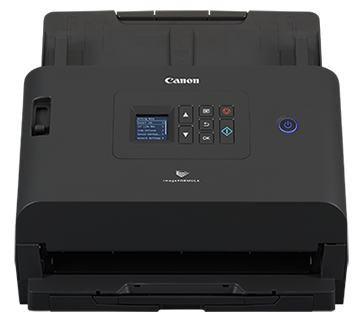

imageFORMULA DR-S250N

Intuitive A4 Desktop Scanning for Your Business’ Hassle-free Operation

As businesses navigate the challenges of the modern world, the imageFORMULA DR-S250N offers the ideal solution for your scanning needs. Elevate your efficiency, minimize physical contact, and stay at the forefront of the evolving work landscape with our forward-looking scanner.

Category: Scanners

Description
Specifications

Description

Features

Fast and High-quality Scanning

The DR-S250N scanner not only ensures exceptional image quality but also operates at rapid capture speeds, effectively boosting productivity and instilling confidence in all your scanning tasks.

End Point Direct Scanning

Pre-register frequently used scan and send settings on the scanner to facilitate seamless scanning directly to e-mail, shared folder, printer, FTP, FTPS and SFTP; eliminating the need for computers and/ or smart devices.

Use Right Out of the Box

With CaptureOnTouch Lite Web, complete your scanning tasks using web browsers without the need for driver and software installations. This enables easy sharing of the scanner among multiple users.

Specifications

Type	Desktop Sheet-fed Scanner
*Scanning Speed^1**
Greyscale	200 dpi: 50 ppm (Simplex) / 100 ipm (Duplex) 300 dpi: 50 ppm (Simplex) / 100 ipm (Duplex)
Colour	200 dpi: 50 ppm (Simplex) / 100 ipm (Duplex) 300 dpi: 40 ppm (Simplex) / 80 ipm (Duplex)
Scanning Element	Contact Image Sensor (CIS)
Light Source	LED
Scanning Side	Simplex / Duplex
Scanning Modes	Black and White, Greyscale, Colour, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, Active Threshold
Scanner Features	Double-feed Detection, Folio Scanning, Moiré Reduction, MultiStream, 2D / Barcode
*Output Resolution^2**	100, 150, 200, 240, 300, 400, 600, 1200 dpi
Suggested Daily Volume (SDV)	6,000 – 9,000 scans a day

Document Size
Plain Paper	Width: 50.8 to 216 mm Length: 54 to 356 mm (Up to 5,588 mm long with Long Document mode)
Business Card	Width: 50 to 55 mm Length: 85 to 91 mm
Card (ISO Standard)	54 x 86 mm
Document Thickness and Weight
Plain Paper	Page Separation: 27 to 209 g/m² (0.04 to 0.25 mm) Non-separation: 27 to 255 g/m² (0.04 to 0.3 mm)
Business Card	128 to 255 g/m² (0.15 to 0.30 mm)
Card	1.4 mm or smaller
*Auto Document Feeder (ADF) Capacity^3**	60 sheets

Interface	USB 3.2 / 2.0, 10Base-T/100Base-TX/1000Base-T
Software	ISIS / TWAIN Drivers, CaptureOnTouch, Mopria Scan

Power Requirements	AC 100 – 240 V (50 / 60 Hz)
Power Consumption
Scanning (Max.)	22 W
Sleep Mode	1.6 W
With Power Switched OFF (Max.)	0.1 W
Operating Environment
Temperature	10 to 32.5°C
Humidity	20 to 80% RH
Dimensions (W x D x H)
When Trays Are Closed	291 x 267 x 242 mm
When Trays Are Opened	291 x 600 x 378 mm
Weight (Approx.)	3.4 kg (Without AC adapter)

Options / Consumables	Exchange Roller Kit, Carrier Sheet (Passport), Carrier Sheet (A4)
Accessories	Flatbed Scanner Unit 102

Based on A4 portrait document size.
Primary scan lines x secondary scan lines.
Size: A4 or smaller, paper weight: 80 g/m².
