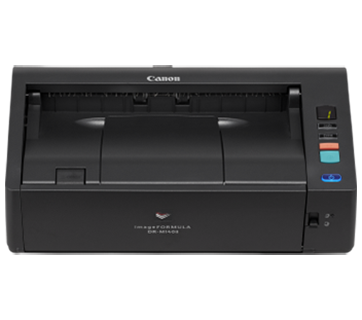

imageFORMULA DR-M140II
imageFORMULA DR-M140II
Compact Desktop Scanner for a Productive Workgroup
Made for business, the imageFORMULA DR-M140II helps automate your business’ information capture processes efficiently.
Description
Features
Compact Space-Saving Design
The U-turn path mode enables full-front operation while saving space when placed on countertops or tight spaces.
Fast and High-Quality Scanning
Scan with an impressive output resolution of up to 1,200 dpi at fast speeds of up to 40 ppm (simplex) / 80 ipm (duplex).
Versatile Media Handling
DR-M140II is able to handle media of wide ranging textures and thickness. Easy to set-up, fast scanning of paper documents, receipts, IDs and business cards are possible with just a touch of a button.
Specifications
Specifications
Scanning
|
Type |
Desktop Sheet-Fed Scanner |
|
Scanning Speed*1 |
|
|
Greyscale |
200 dpi: 40 ppm (Simplex) / 80 ipm (Duplex) |
|
Colour |
200 dpi: 40 ppm (Simplex) / 80 ipm (Duplex) |
|
Scanning Element |
Contact Image Sensor (CIS) |
|
Light Source |
LED |
|
Scanning Side |
Simplex / Duplex |
|
Scanning Modes |
Black and White, Error Diffusion, 256-level Greyscale, Active Threshold, |
|
Scanner Features |
Folio Scanning, Double Feed Release, |
|
Optical Resolution (Max.) |
600 dpi |
|
Output Resolution*2 |
100, 150, 200, 240, 300, 400, 600, 1200 dpi |
Media Handling
|
Document Size |
|
|
Plain Paper |
Width: 50.8 to 216 mm |
|
Business Card |
Width: 50.8 to 55 mm |
|
Card (ISO Standard) |
54 x 86 mm |
|
Document Thickness and Weight |
|
|
Plain Paper |
U-turn Path: 27 to 128 g/m² (0.04 to 0.15 mm) |
|
Business Card |
380 g/m² (0.45 mm) or smaller |
|
Card |
0.76 mm or less |
|
ADF Capacity*3 |
80 sheets |
Connectivity & Software
|
Interface |
USB 2.0 |
|
Software |
ISIS / TWAIN / WIA Drivers, CaptureOnTouch |
General
|
Power Requirements |
AC 100 – 240 V (50 / 60 Hz) |
|
Power Consumption |
|
|
Scanning (Max.) |
24.5 W |
|
Sleep Mode |
1.6 W |
|
With Power Switched OFF (Max.) |
0.1 W |
|
Operating Environment |
|
|
Temperature |
10 to 32.5°C |
|
Humidity |
20 to 80% RH |
|
Dimensions (W x D x H) |
|
|
When Trays Are Closed |
313 × 181 × 93 mm |
|
When Trays Are Opened |
313 × 250 × 165 mm |
|
Weight (Approx.) |
2.6 kg (without AC adapter) |
Consumables & Accessories
|
Options / Consumables |
Exchange Roller Kit |
|
Accessories |
Flatbed Scanner Unit 102 |
- Based on A4 portrait document size.
- Primary scan lines x secondary scan lines.
- Size: A4 or smaller (same type document only), paper weight: 70 – 100 g/m², temperature: 15 to 27.5°C, humidity: 25 to 75% RH, total thickness: 10 mm or less.
