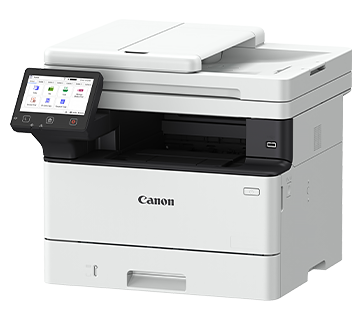

imageCLASS MF469x II

Accelerate Productivity with the Versatile Multifunction Printer

Streamline your workflow for greater efficiency. With automatic duplex printing and scanning capabilities, intuitive touchscreen display, and enhanced security, the MF469x II manages your print and scanning needs so you can focus on growing your business.

Categories: Laser All In One, Printers

Description
Specifications

Description

Features

Intuitive Touchscreen Display

Navigate and configure the printer settings easily with the colour touchscreen display panel that comes with a vari-angle mechanism for greater viewing flexibility and clarity.

Single Pass Duplex Scan

Maximise scanning efficiency with the 50-sheet single-pass duplex automatic document feeder (DADF) and skip blank page while scanning.

Application Library

The Application Library helps you work smarter and more efficiently. You can print forms/templates directly from the device with just a tap of the button, create shortcuts for frequently-used function, and scan to/print from third party cloud storage.

Flexible Connectivity

Connect the printer to your office network wirelessly or utilise the printer’s built-in Access Point Mode to directly connect to mobile devices without additional router.

Auto Duplex Printing

Print two-sided documents to effectively reduce paper usage while lowering carbon footprint and operating costs.

Enhanced Data Security

Safeguard print data against tampering by encrypting communication data with the latest protocol, TLS 1.3 and WPA 3. Monitor system integrity during startup with Verify System at Startup.

Expandable Paper Capacity

Expand paper handling capability up to 900 sheets by adding an optional paper feeder.

Minimal Maintenance

Canon’s all-in-one toner cartridges provide hassle-free, low-maintenance operation. High yield option Cartridge 069H is available to meet high print volume requirement.

Support Multiple Printing Environments

In addition to Canon’s proprietary UFR II print language, industry standard PCL6 and Adobe® PostScript® 3™ print languages are available for seamless integration with a wide range of business applications.

Specifications

Printing Method	Monochrome Laser Beam Printing
Print Speed
A4^*1	40 ppm
Letter^*1	42 ppm
2-Sided	33 ipm (A4) / 35 ipm (Letter)
Print Resolution	600 x 600 dpi
Print Quality with Image Refinement Technology	1,200 x 1,200 dpi (Equivalent)
Warm-Up Time (From Power On)	14 sec
*First Print Out Time (FPOT) (Approx.)^2**
A4	5 sec
Print Language	UFR II, PCL 6, Adobe® PostScript® 3™
Auto Duplex Print	Yes
Print Margins	Top/Bottom/Left/Right margin: 5 mm Top/Bottom/Left/Right margin: 10 mm (Envelope)
Supported File Format for USB Direct Print	JPEG, TIFF, PDF

Copy Speed
A4	40 ppm
Copy Resolution	Up to 600 x 600 dpi
First Copy Out Time (FCOT) (Approx.) Platen Glass
A4	6.1 sec
First Copy Out Time (FCOT) (Approx.) ADF
A4	6.1 sec
Reduce/Enlargement	25 – 400% in 1% increments
Copy Features	Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy, 2-sided originals

Scan Resolution
Optical	Up to 600 x 600 dpi
Driver Enhanced	Up to 9,600 x 9,600 dpi
Scan Type	Colour Contact Image Sensor
Maximum Scan Size
Platen Glass	Up to 216 x 297 mm
Auto Document Feeder	Up to 216 x 356 mm
*Scan Speed^3**
Platen Glass	1.8/1.9 sec (Mono/Colour)
Auto Document Feeder, A4 (Mono/Colour)	1-Sided: 50 ipm (Mono), 40 ipm (Colour) 2-Sided: 100 ipm (Mono), 80 ipm (Colour)
Colour Depth	24-bit
Pull Scan	Yes, USB and Network
Push Scan (Scan To PC) with MF Scan Utility	Yes, USB and Network
Scan To Cloud	MF Scan Utility
Scan Driver Compatibility	TWAIN, WIA

Send Method	SMB, Email, FTP, iFAX Simple
Colour Mode	Full Colour, Greyscale, Monochrome
Scan Resolution	300 x 600 dpi
File Format	JPEG (Single page), TIFF, PDF, Compact PDF, PDF (OCR)

Modem Speed	Up to 33.6 kbps (Up to 3 sec/page)
Fax Resolution	Up to 400 x 400 dpi
Compression Method	MH, MR, MMR, JBIG
*Memory Capacity^4**	Up to 90 jobs
Speed Dials	Up to 281 dials
Group Dials / Destinations	Up to 299 dials
Sequential Broadcast	310 destinations
Receive Mode	Fax only, Fax/Tel Auto Switch, Answer Mode, Manual
Memory Backup	Permanent fax memory backup
Fax Features	Fax Forwarding, Remote Reception, PC Fax (Transmit only) DRPD, ECM, Auto Redial, Fax Activity Reports, Fax Activity Result Reports, Fax Activity Management Reports

Input Tray Capacity (Plain Paper, 80 g/m²)
Standard
Cassette	250 sheets
Multi-Purpose Tray	100 sheets
Auto Document Feeder	50-Sheet Duplex, Single Pass
Optional
Paper Feeder	550 sheets
Maximum	900 sheets (Standard + 1 Paper Feeder)
Output Tray Capacity (Plain Paper, 80 g/m²)	150 sheets
Media Size
Cassette / Paper Feeder	A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Custom (min. 105 x 148 mm to max. 216 x 355.6 mm) Note: The cassette may not fully close when loaded with paper longer than A4 size.
Multi-Purpose Tray	A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76.2 x 127 mm to max. 216 x 355.6 mm)
Auto Document Feeder	A4, A5, A6, Letter, Legal (min. 148 x 105 mm to max. 216 x 356 mm) Business Card: 48 x 85 mm
2-Sided Printing	A4, Legal, Letter, Foolscap, Indian Legal, Custom (min. 210 x 279.4 mm to max. 216 x 355.6 mm)
Media Type	Plain Paper, Recycled Paper, Colour Paper, Bond Paper
Media Weight
Cassette / Paper Feeder	60 – 120 g/m²
Multi-Purpose Tray	60 – 199 g/m²
Auto Document Feeder	50 – 105 g/m² (Business Card: 80 – 209 g/m²)

Standard Interfaces
Wired	USB 2.0, 10Base-T/100Base-TX/1000Base-T
Wireless	Wi-Fi 802.11b/g/n (Infrastructure Mode, Access Point, WPS)
Network Protocol
Print	LPD, RAW, IPP, IPPS, WSD-Print (IPv4, IPv6)
Scan	Email, SMB, WSD-Scan (IPv4, IPv6), FTP, Oauth 2.0
TCP/IP Application Services	mDNS, DHCP, Auto IP (IPv4), DHCPv6 (IPv6)
Management	SNMPv3 (IPv4, IPv6), HTTP/HTTPS, SNTP
Network Security
Wired	IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3
Wireless	Infrastructure Mode: WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE(AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES) Access Point Mode: WPA2-PSK(AES), WPA3-SAE(AES)
Mobile Solution	Canon PRINT app, AirPrint®, Mopria®, Microsoft Universal Print
*Compatible Operating System^5**	Windows®10/11, Windows® Server 2016/2019/2022/2025, macOS 10.15 or later, Linux, Chrome OS
Other Features	Department ID, Secure Print, Skip Blank Page, Application Library
Available Software	Printer Driver, Fax Driver, Scanner Driver, MF Scan Utility, Toner Status

Device Memory	1 GB
Storage (eMMC)	2 GB
Display	5″ LCD Touchscreen
Power Requirements	AC 220 – 240 V, 50/60 Hz
Power Consumption
Operation	480 W (max. 1,250 W)
Standby	6 W
Sleep	0.9 W
Operating Environment
Temperature	10 – 30°C
Humidity	20 – 80% RH (no condensation)
*Monthly Duty Cycle^6**	80,000 pages
Dimensions (W x D x H)	420 x 460 x 375 mm
*Weight^7 (Approx.)**	16.2 kg
*Toner Cartridge^8**
Standard	Cartridge 070: 3,000 pages (Bundled: 3,000 pages)
High	Cartridge 070H: 10,200 pages

Paper Feeder	Cassette Feeding Unit-AH1 (550 sheets)
Barcode Printing Kit	Barcode Printing Kit-E1E

Print speed is measured based on internal testing using A4/Letter size paper printed with 100% print ratio to
original on one-sided paper. Internal testing involved continuously printing the same one page of content on plain
paper. Print speed may vary depending on paper type, paper size or paper feeding direction.
First print out time is measured based on internal test procedure and may vary. When the printer is in the ready
state, this is the time from receiving the print instruction from the controller to printing one sheet and finishing
paper ejection.
Scan resolution 300 x 300 dpi.
Based on ITU-T #1 Chart (standard mode).
The latest drivers for Windows, Windows Server, Mac OS and Linux can be downloaded from the
https://asia.canon/en/support website when available.
Monthly Duty Cycle value provides a means of comparison for product robustness in relation to other Canon laser
printer devices, and does not refer to actual maximum image output per month.
Excluding toner cartridge.
Toner cartridge yield is in accordance with ISO/IEC 19752.
