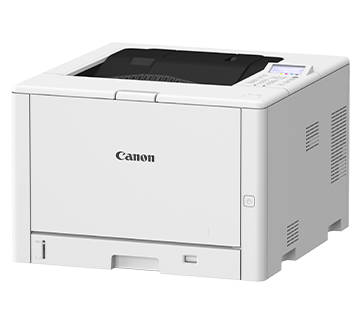

imageCLASS LBP811Cx

Outstanding A3 Colour Laser for the Dynamic Business

Enhance productivity in any business environment with the imageCLASS LBP811Cx. This versatile printer supports a variety of media sizes, allowing businesses to efficiently manage a wide range of printing tasks. An ideal choice to boost workplace productivity.

Categories: Laser All In One, Printers

Description
Specifications

Description

Features

V² Colour Profile

Create an impactful business document with beautiful colours that complement the razor-sharp quality text. Canon’s V² colour technology delivers vivid and vibrant professional looking printout.

5-line LCD Display

Configure the printer settings easily with the 5-line LCD display. Information can be displayed at a glance, facilitating easy device management and maintenance.

Expandable Paper Capacity

In addition to the standard 550-sheet cassette and 100-sheet multi-purpose tray, the imageCLASS LBP811Cx has several paper options that expand paper capacity up to 2,550 sheets, minimizing the frequency of paper refills — a time-saving solution for high-volume jobs or for a variety of paper sizes and types.

Auto Duplex Printing

Print two-sided documents to effectively reduce paper usage while lowering carbon footprint and operating costs.

Flexible Connectivity

Connect the printer to your office network wirelessly or utilise the printer’s built-in Access Point Mode for direct connection to mobile devices without additional router.

Minimal Maintenance

Canon’s all-in-one toner cartridges provide hassle-free, low-maintenance operation. High yield option Cartridge 069H is available to meet high print volume requirement.

Specifications

Printing Method	Colour Laser Beam Printing
Print Speed
A4^*1 (mono/colour)	30 / 30 ppm
Letter^*1 (mono/colour)	30 / 30 ppm
2-Sided A4 (mono/colour)	28.9 / 28.9 ipm
A3 (mono/colour)	15 / 15 ppm
Print Resolution	600 x 600 dpi 1,200 x 1,200 dpi
Print Quality with Image Refinement Technology	1,200 x 1,200 dpi (equivalent)
Warm-Up Time (From Power On)	22 sec or less
*First Print Out Time (FPOT)^2(Approx.)**
A4 (mono/colour)	11.3 / 12.6 sec
Recovery Time (From Sleep Mode)	7 sec or less
Print Language	UFR II, PCL 6, Adobe^® PostScript^® 3™
Auto Duplex Print	Yes
Print Margins	Top/Bottom/Left/Right margin: 5 mm Top/Bottom/Left/Right margin: 10 mm (Envelope)
Supported File Format for USB Direct Print	PDF, TIFF, JPEG, XPS

Input Tray Capacity (Plain Paper, 80 g/m²)
Standard
Cassette	250 sheets
Multi-Purpose Tray	100 sheets
Optional
Paper Feeder	550 sheets
Maximum	2,550 sheets (Standard + 4 Paper Feeders)
Output Tray Capacity (Plain Paper, 80 g/m²)	250 sheets
Media Size
Cassette/Paper Feeder^*3 (Optional)	A3, A4, A5, A6, B4, B5, B6, Ledger, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal Custom (min. 85 x 148 mm to max. 297 x 431.8 mm)
Multi-Purpose Tray	A3, A4, A5, A6, B4, B5, B6, Ledger, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, India Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5) Custom (min. 64 x 120 mm to max. 297 x 1,320 mm)
2-Sided Printing	A3, A4, A5, B4, B5, Ledger, Legal, Letter, Executive, Foolscap, Government Letter, Government Legal Custom (min. 148 x 148 mm to max. 297 x 431.8 mm)
Media Type	Plain Paper, Recycled Paper, Label, Postcard, Envelope
Media Weight
Cassette/Paper Feeder	60 – 163 g/m²
Multi-Purpose Tray	60 – 250 g/m²
2-Sided Printing	60 – 163 g/m²

Standard Interface
Wired	USB 2.0, 10Base-T/100Base-TX/1000Base-T
Wireless	IEEE 802.11b/g/n (Infrastructure Mode, Access Point Mode)
Network Protocol
Print	TCP/IP (LPD/RAW/IPP/IPPS/FTP/WSD)
Network Security
Wired	IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE 802.1X, IPsec, TLS 1.3, Dual Network Support
Wireless	Infrastructure Mode: WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES), WPA-EAP (AES), WPA2-EAP (AES), WPA3-EAP (AES) Access Point Mode: WPA2-PSK (AES)
Mobile/Cloud Printing Solutions	Canon PRINT, Canon Print Service (Android), AirPrint^®, Mopria^® Print Service, Microsoft Universal Print
*Operating System Compatibility^4**	Windows 10/11, Windows Server 2016/2019/2022, macOS 10.14 or later, Linux, Chrome OS
Other Features	Force Hold Print, Department ID, Secure Print
Available Software	Printer Driver, Toner Status

Device Memory	2 GB
Display	5-Line LCD
Power Requirements	AC 220 – 240 V, 50/60 Hz
*Power Consumption^5 (Approx.)**
Operation	570 W (max. 1,710 W)
Standby	30 W
Sleep	1 W
Operating Environment
Temperature	10 – 30°C
Humidity	20 – 80% RH (no condensation)
*Monthly Duty Cycle^6**	100,000 pages
Dimensions (W x D x H) (Approx.)	499 x 525 x 340 mm
*Weight^7 (Approx.)**	32.5 kg
*Toner Cartridge^8**
Standard	Cartridge 076 Black: 15,000 pages (Bundled: 5,000 pages) Cartridge 076 Cyan, Magenta, Yellow: 14,000 pages (Bundled: 3,000 pages)
Low	Cartridge 076L Black: 7,000 pages Cartridge 076L Cyan, Magenta, Yellow: 5,000 pages

Paper Feeder	Paper Feeder PF-L1 (550 sheets)
Plain Pedestal	Plain Pedestal BA1
Barcode Printing Kit	Barcode Printing Kit-D1E

Print speed is measured based on internal testing using A4/Letter size paper printed with 100% print ratio to original on one-sided paper. Internal testing involved continuously printing the same one page of content on plain paper. Print speed may vary depending on paper type, paper size or paper feeding direction.
First print out time is measured based on internal test procedure and may vary. When the printer is in the ready state, this is the time from receiving the print instruction from the controller to printing one sheet and finishing paper ejection.
Custom size for paper feeder: min. 85 x 148 mm to max. 297 x 431.8 mm; additional attachment may be required.
The latest drivers for Windows, Windows Server, macOS and Linux can be downloaded from the https://asia.canon/en/support website when available.
Power consumption is based on internal test procedure and may vary.
Monthly Duty Cycle value provides a means of comparison for product robustness in relation to other Canon laser printer devices, and does not refer to actual maximum image output per month.
Excluding toner cartridge.
Toner cartridge yield is in accordance with ISO/IEC 19798.

imageCLASS LBP811Cx
