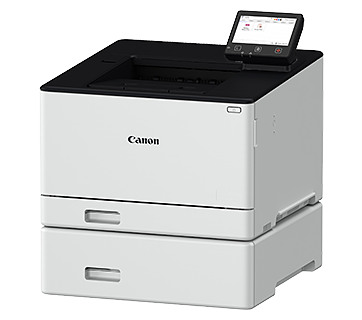

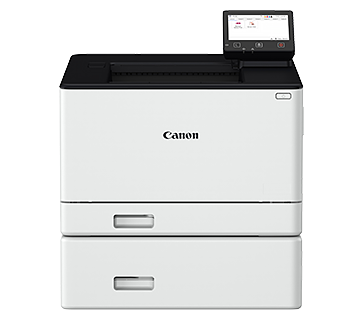

imageCLASS LBP674Cx II

Productivity Meets Vivid Colour

Create impressive visuals with a touch of colour details with imageCLASS LBP674Cx II.

Categories: Laser All In One, Printers

Description
Specifications

Description

Features

V² Colour Profile

Create an impactful business document with beautiful colours that complement the razor-sharp quality text. Canon’s V² colour technology delivers vivid and vibrant professional looking printout.

Intuitive Touchscreen Display

Navigate and configure the printer settings easily with the colour touchscreen display panel that comes with a vari-angle mechanism for greater viewing flexibility and clarity.

Application Library

The Application Library helps you work smarter and more efficiently. You can print forms/templates directly from the device with just a tap of the button, create shortcuts for frequently-used function, and scan to/print from third party cloud storage.

Support Multiple Printing Environments

In addition to Canon’s proprietary UFR II print language, industry standard PCL6 and Adobe® PostScript® 3™ print languages are available for seamless integration with a wide range of business applications.

Auto Duplex Printing

Print two-sided documents to effectively reduce paper usage while lowering carbon footprint and operating costs.

Enhanced Data Security

Safeguard print data against tampering by encrypting communication data with the latest protocol, TLS 1.3 and WPA 3. Monitor system integrity during startup with Verify System at Startup.

Expandable Paper Capacity

Expand paper handling capability up to 900 sheets by adding an optional paper feeder.

Minimal Maintenance

Canon’s all-in-one toner cartridges provide hassle-free, low-maintenance operation. High yield option Cartridge 069H is available to meet high print volume requirement.

Canon PRINT App

With Canon’s latest mobile business solution, you can print and scan documents, photos, web pages and emails all with just one app. Click here to find out more!

Specifications

Printing Method	Colour Laser Beam Printing
Print Speed
A4^*1 (Mono/Colour)	33 / 33 ppm
Letter^*1 (Mono/Colour)	35 / 35 ppm
2-Sided, A4 (Mono/Colour)	29 / 29 ipm
Print Resolution	600 x 600 dpi
Print Quality with Image Refinement Technology	1,200 x 1,200 dpi (equivalent)
Warm-Up Time (From Power On)	14 sec or less
*First Print Out Time (FPOT) (Approx.)^2**
A4 (Mono/Colour)	7.1 / 7.1 sec
Print Language	UFR II, PCL 6, Adobe® PostScript® 3™
Auto Duplex Print	Yes
Print Margins	Top/Bottom/Left/Right Margin: 5 mm Top/Bottom/Left/Right Margin: 10 mm (Envelope)
Supported File Format for USB Direct Print	JPEG, TIFF, PDF

Input Tray Capacity (Plain Paper, 80 g/m²)
Standard
Cassette	250 sheets
Multi-Purpose Tray	50 sheets
Optional
Paper Feeder	550 sheets
Maximum	850 sheets (Cassette + 1 Paper Feeder)
Output Tray Capacity (Plain Paper, 80 g/m²)	150 sheets
Media Size
Cassette	A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Envelope (COM10, Monarch, DL, C5), Custom (min. 98.0 x 148.0 mm to max. 216.0 x 356.0 mm)
Paper Feeder	A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Custom (min. 100.0 x 148.0 mm to max. 216.0 x 356.0 mm)
Multi-Purpose Tray	A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Envelope ( COM10, Monarch, DL, C5), Custom (min. 76.0 x 127.0 mm to max. 216.0 x 356.0 mm)
2-Sided Printing	A4, A5, Legal, Letter, Foolscap, Indian Legal, Custom (min. 148.0 x 148.0 mm to max. 216 x 356.0 mm)
Media Type	Plain Paper, Recycled Paper, Colour Paper, Bond Paper
Media Weight
Cassette / Paper Feeder	60 – 200 g/m²
Multi-Purpose Tray	60 – 200 g/m²

Standard Interface
Wired	USB 2.0, 10Base-T/100Base-TX/1000Base-T
Wireless	Wi-Fi 802.11b/g/n (Infrastructure Mode, Access Point, WPS)
Network Protocol
Print	LPD, RAW, IPP, IPPS, WSD-Print (IPv4, IPv6)
TCP/IP Application Services	mDNS, DHCP, Auto IP (IPv4), DHCPv6 (IPv6)
Management	SNMPv3 (IPv4, IPv6), HTTP/HTTPS, SNTP
Network Security
Wired	IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3
Wireless	Infrastructure Mode: WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE(AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES) Access Point Mode: WPA2-PSK(AES), WPA3-SAE(AES)
Mobile Solution	Canon PRINT app, AirPrint®, Mopria® Print Service, Microsoft® Universal Print
*Compatible Operating System^3**	Windows®, Windows Server®, macOS®, Linux, Chrome OS™
Other Features	Department ID, Secure Print, Application Library
Available Software	Printer Driver, Toner Status

Device Memory	1 GB
Storage (eMMC)	2 GB
Display	5″ LCD Touchscreen
Power Requirements	AC 220 – 240 V, 50/60 Hz
Power Consumption (Approx.)
Operation	700 W (max. 1380 W)
Standby	24 W
Sleep	1 W
Operating Environment
Temperature	10 – 30°C
Humidity	20 – 80% RH (no condensation)
*Monthly Duty Cycle^4**	50,000 pages
Dimensions (W x D x H)	425 x 427 x 380 mm
*Weight^5 (Approx.)**	16.1 kg
*Toner Cartridge^6**
Standard	Cartridge 069 BK: 2,100 pages (Bundled: 1,200 pages) Cartridge 069 CMY: 1,900 pages (Bundled: 1,100 pages)
High	Cartridge 069H BK: 7,600 pages Cartridge 069H CMY: 5,500 pages

Paper Feeder	Paper Feeder PF-K1 (550 sheets)
Barcode Printing	Barcode Printing Kit-E1E

Print speed is measured based on internal testing using A4/Letter size paper printed with 100% print ratio to original on one-sided paper. Internal testing involved continuously printing the same one page of content on plain paper. Print speed may vary depending on paper type, paper size or paper feeding direction.
First print out time is measured based on internal test procedure and may vary. When the printer is in the ready state, this is the time from receiving the print instruction from the controller to printing one sheet and finishing paper ejection.
The latest drivers for Windows, Windows Server, Mac OS and Linux can be downloaded from the https://asia.canon/en/support website when available.
Monthly Duty Cycle value provides a means of comparison for product robustness in relation to other Canon laser printer devices, and does not refer to actual maximum image output per month.
Excluding toner cartridge.
Toner cartridge yield is in accordance with ISO/IEC 19798.
