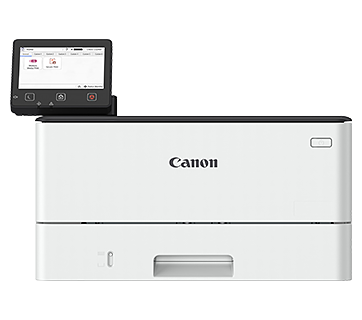

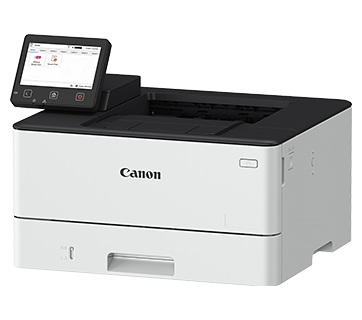

imageCLASS LBP248x II

Maximise Productivity and Achieve Workflow Efficiency

Discover effortless printing, robust security, expandable paper capacity, and dynamic connectivity. Designed to elevate productivity in small offices and workgroups.

Categories: Laser All In One, Printers

Description
Specifications

Description

Features

Intuitive Touchscreen Display

Navigate and configure the printer settings easily with the colour touchscreen display panel that comes with a vari-angle mechanism for greater viewing flexibility and clarity.

Flexible Connectivity

Connect the printer to your office network wirelessly or utilise the printer’s built-in Access Point Mode to directly connect to mobile devices without additional router.

Application Library

The Application Library helps you work smarter and more efficiently. You can print forms/templates directly from the device with just a tap of the button, create shortcuts for frequently-used function, and scan to/print from third party cloud storage.

Auto Duplex Printing

Print two-sided documents to effectively reduce paper usage while lowering carbon footprint and operating costs.

Support Multiple Printing Environments

In addition to Canon’s proprietary UFR II print language, industry standard PCL6 and Adobe® PostScript® 3™ print languages are available for seamless integration with a wide range of business applications.

Enhanced Data Security

Safeguard print data against tampering by encrypting communication data with the latest protocol, TLS 1.3. Monitor system integrity during startup with Verify System at Startup.

Minimal Maintenance

Canon’s all-in-one toner cartridges provide hassle-free, low-maintenance operation. High yield option Cartridge 069H is available to meet high print volume requirement.

Expandable Paper Capacity

With Canon’s latest mobile print application, you can print and scan documents, photos, web pages and emails all with just one app. Expand paper handling capability up to 900 sheets by adding an optional paper feeder.

Specifications

Printing Method	Monochrome Laser Beam Printing
Print Speed
A4^*1	40 ppm
Letter^*1	42 ppm
2-Sided	33 ipm (A4) / 35 ipm (Letter)
Print Resolution	600 x 600 dpi
Print Quality with Image Refinement Technology	1,200 x 1,200 dpi (equivalent)
Warm-Up Time (From Power On)	14 sec
First Print Out Time (FPOT) (Approx.)^*2
A4	5 sec
Recovery Time (From Sleep Mode)	4 sec or less
Print Language	UFR II, PCL 6, Adobe® PostScript®3™
Auto Duplex Print	Yes
Print Margins	Top/Bottom/Left/Right margin: 5 mm Top/Bottom/Left/Right margin: 10 mm (Envelope)
Supported File Format for USB Direct Print	JPEG, TIFF, PDF

Input Tray Capacity (Plain Paper, 80 g/m²)
Standard
Cassette	250 sheets
Multi-Purpose Tray	100 sheets
Optional
Paper Feeder	550 sheets
Maximum	900 sheets (Standard + 1 Paper Feeder)
Output Tray Capacity (Plain Paper, 80 g/m²)	150 sheets
Media Size
Cassette / Paper Feeder	A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Custom (min. 105 x 148 mm to max. 216 x 355.6 mm) Note: The cassette may not fully close when loaded with paper longer than A4 size.
Multi-Purpose Tray	A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76.2 x 127 mm to max. 216 x 355.6 mm)
2-Sided Printing	A4, Legal, Letter, Foolscap, Indian Legal, Custom (min. 210 x 279.4 mm to max. 216 x 355.6 mm)
Media Type	Plain Paper, Recycled Paper, Colour Paper, Bond Paper
Media Weight
Cassette / Paper Feeder	60 – 120 g/m²
Multi-Purpose Tray	60 – 199 g/m²

Standard Interfaces
Wired	USB 2.0, 10Base-T/100Base-TX/1000Base-T
Wireless	Wi-Fi 802.11b/g/n (Infrastructure Mode, Access Point, WPS)
Network Protocol
Print	LPD, RAW, IPP, IPPS, WSD-Print (IPv4, IPv6)
TCP/IP Application Services	mDNS, DHCP, Auto IP (IPv4), DHCPv6 (IPv6)
Management	SNMPv3 (IPv4, IPv6), HTTP/HTTPS, SNTP
Network Security
Wired	IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3
Wireless	Infrastructure Mode: WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE(AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES) Access Point Mode: WPA2-PSK(AES), WPA3-SAE(AES)
Mobile Solution	Canon PRINT app, AirPrint®, Mopria®Print Service, Microsoft Universal Print
*Compatible Operating System^3**	Windows®10/11, Windows® Server 2016/2019/2022/2025, macOS 10.15 or later, Linux, Chrome OS
Other Features	Department ID, Secure Print, Application Library
Available Software	Printer Driver, Toner Status

Device Memory	1 GB
Display	5″ LCD Touchscreen
Power Requirements	AC 220 – 240 V, 50/60 Hz
Power Consumption (Approx.)
Operation	480 W (max. 1,250 W)
Standby	6 W
Sleep	0.9 W
Operating Environment
Temperature	10 – 30°C
Humidity	20 – 80% RH (no condensation)
Monthly Duty Cycle^*4	80,000 pages
Dimensions (W x D x H) (Approx.)	438 x 373 x 312 mm
*Weight^5 (Approx.)**	9.2 kg
*Toner Cartridge^6**
Standard	Cartridge 070: 3,000 pages (Bundled: 3,000 pages)
High	Cartridge 070H: 10,200 pages

Paper Feeder	Cassette Feeding Unit-AH1 (550 sheets)
Barcode Printing Kit	Barcode Printing Kit-E1E

Print speed is measured based on internal testing using A4/Letter size paper printed with 100% print ratio to original on one-sided paper. Internal testing involved continuously printing the same one page of content on plain paper. Print speed may vary depending on paper type, paper size or paper feeding direction.
First print out time is measured based on internal test procedure and may vary. When the printer is in the ready state, this is the time from receiving the print instruction from the controller to printing one sheet and finishing paper ejection.
The latest drivers for Windows, Windows Server, Mac OS and Linux can be downloaded from the https://asia.canon/en/support website when available.
Monthly Duty Cycle value provides a means of comparison for product robustness in relation to other Canon laser printer devices, and does not refer to actual maximum image output per month.
Excluding toner cartridge.
Toner cartridge yield is in accordance with ISO/IEC 19752.
