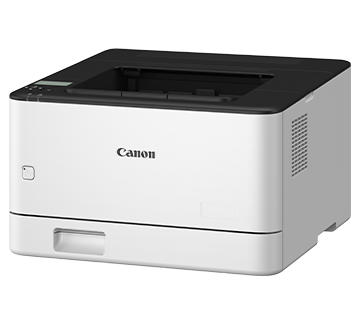

imageCLASS LBP171dn

Great Performance in a Compact Design

Designed for home offices and small businesses, the imageCLASS LBP171dn features fast print speeds with duplex functionality. Its user-friendly features ensure consistent and high-quality printing.

Categories: Laser All In One, Printers

Description
Specifications

Description

Features

5-line LCD Display

Navigate and configure the printer settings easily with the 5-line LCD display. Information can be displayed at a glance, facilitating easy device management and maintenance.

Auto Duplex Printing

Do your part for the environment with automatic duplex printing. Print on both sides to eliminate paper waste while reducing carbon footprint and operating costs.

Minimal Maintenance

The imageCLASS MF3010 uses the all-in-one Toner Cartridge 325. The Canon all-in-one toner cartridge design integrates the photosensitive drum, cleaning unit, and toner reservoir in one compact package, saving costs and making toner replacements easy.

Enhanced Data Security

Safeguard print data against tampering by encrypting communication data with the latest protocol, TLS 1.3. Monitor system integrity during startup with Verify System at Startup.

Specifications

Printing Method	Monochrome Laser Beam Printing
Print Speed
A4^*1	33 ppm
Letter^*1	35 ppm
2-Sided, A4	20.9 ipm
Print Resolution	600 x 600 dpi
Print Quality with Image Refinement Technology	1,200 x 1,200 dpi (equivalent)
Warm-Up Time (From Power On)	15 sec or less
*First Print Out Time (FPOT)^2 (Approx.)**
A4	5.0 sec
Recovery Time (From Sleep Mode)	3.2 sec or less
Print Language	UFR II
Auto Duplex Print	Yes
Print Margins	Top/Bottom/Left/Right margin: 5 mm Top/Bottom/Left/Right margin: 10 mm (Envelope)

Input Tray Capacity (Plain Paper, 80 g/m²)
Cassette	250 sheets
Output Tray Capacity (Plain Paper, 75 g/m²)	100 sheets
Media Size
Cassette	A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Indian Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (Min. 76 x 127 mm to Max. 216 x 356 mm) Note: The cassette may not fully close when loaded with paper longer than A4 size.
2-Sided Printing	A4, Legal, Letter, Foolscap, Indian Legal
Media Type	Plain Paper, Recycled Paper, Label, Postcard, Envelope
Media Weight
Cassette	60 – 163 g/m²
2-Sided Printing	60 – 105 g/m²

Standard Interfaces
Wired	USB 2.0, 10Base-T/100Base-TX
Network Protocol
Print	TCP/IP (LPD, RAW, IPP, IPPS, WSD)
Network Security
Wired	IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE 802.1X, TLS 1.3
Mobile/Cloud Printing Solutions	Canon PRINT, Canon Print Service (Android), AirPrint^®, Mopria^® Print Service, Microsoft Universal Print
*Compatible Operating Systems^3**	Windows 10/11, Windows Server 2016/2019/2022, macOS 10.14 or later, Linux, Chrome OS
Available Software	Printer Driver, Toner Status

Device Memory	256 MB
Display	5-Line LCD
Power Requirements	AC 220 – 240 V, 50/60 Hz
*Power Consumption^4 (Approx.)**
Operation	416 W (max. 990 W)
Standby	3.5 W
Sleep	0.5 W
Operating Environment
Temperature	10 – 30°C
Humidity	20 – 80% RH (no condensation)
*Monthly Duty Cycle^5**	50,000 pages
Dimensions (W x D x H) (Approx.)	365 x 399 x 222 mm
*Weight^6 (Approx.)**	6.9 kg
*Toner Cartridge^7**
Standard	Cartridge 072: 1,400 pages (bundled: 1,000 pages)
High	Cartridge 072H: 4,100 pages

Print speed is measured based on internal testing using A4/LTR size paper printed with 100% print ratio to original on one-sided paper. Internal testing involved continuously printing the same one page of content on plain paper. Print speed may vary depending on paper type, paper size or paper feeding direction.
First print out time is measured based on internal test procedure and may vary. When the printer is in the ready state, this is the time from receiving the print instruction from the controller to printing one sheet and finishing paper ejection.
The latest drivers for Windows, Windows Server, Mac OS and Linux can be downloaded from the https://asia.canon/en/support website when available.
Power consumption is based on internal test procedure and may vary.
Monthly Duty Cycle value provides a means of comparison for product robustness in relation to other Canon laser printer devices, and does not refer to actual maximum image output per month.
Excluding toner cartridge.
Toner cartridge yield is in accordance with ISO/IEC 19752.
