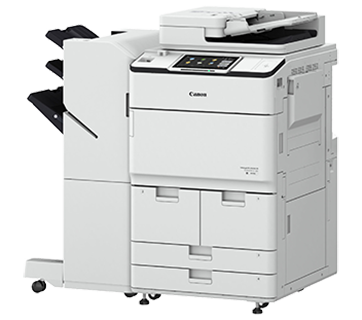

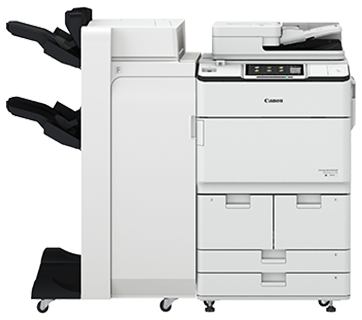

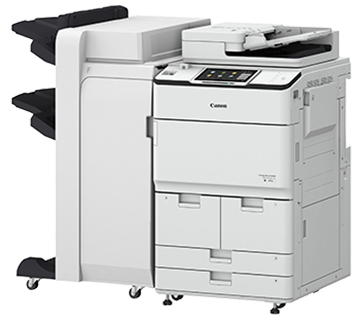

imageRUNNER ADVANCE DX 8900 Series

Machine Type

A3 Monochrome Laser Multifunctional

Core Functions

Print, Copy, Scan, Send, Store and Optional Fax

Processor

1.8 GHz Dual Core Processor

Control Panel

Standard: 10.1″ TFT LCD WSVGA Color Touch panel

Memory

Standard: 4 GB RAM
(Main CPU Side: 2 GB, Image Processing CPU Side: 1 GB + 1 GB (Image processing only))

Hard Disk Drive

Standard: 256 GB (SSD)

Optional: 1 TB (SSD)

Mirroring Hard Disk Drive

Optional

Interface Connection

NETWORK

Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)

Optional: Wireless LAN (IEEE 802.11 b/g/n)

OTHERS

Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1;

Optional: Serial Interface, Copy Control Interface

Paper Supply Capacity (A4, 80 gsm)

Standard: 4,200 sheets

100-sheet Multi-purpose tray x 1

1,500-sheet Paper Deck x 2

550-sheet Paper Cassette x 2

Maximum: 7,700 sheets (with POD Deck Lite-C1 or Paper Deck Unit-E1)

Paper Output Capacity (A4, 80 gsm)

250 sheets (with Copy Tray-R2)

Maximum: 5,000 sheets (High-Volume Stack mode “ON” with Staple Finisher-AG1 PRO or Booklet Finisher-AG1 Pro)

Finishing Capabilities

With options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, Half-fold, C-fold, Accordion-Z fold, Double Parallel-fold, Trimming

Supported Media Types

Multi-purpose Tray:

Thin, Plain, Recycled, Colour, Heavy, Tracing, Bond, Transparency, Labels, Pre-punched, Letterhead, Tab^*1

Paper Decks (Right/Left):

Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead

Paper Cassettes (Upper/Lower):

Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead, Tab^*1

Supported Media Sizes

Multi-purpose Tray:

Standard size: SRA3, A3, A4, A4R, A5^*2, A5R, A6R^*3, B4, B5, B5R

Custom size: 100.0 x 148.0 mm to 330.2 x 487.7 mm

Free Size: 100.0 x 148.0 mm to 330.2 x 487.7 mm

Paper Decks (Right/Left):

Standard size: A4, B5

Paper Cassettes (Upper/Lower):

Standard size: SRA3, A3, A4, A4R, A5R, B4, B5, B5R

Custom size: 139.7 x 182.0 mm to 330.2 x 487.7 mm

Supported Media Weights

Multi-purpose tray: 52 to 256 gsm

Paper Decks (Right/Left): 52 to 220 gsm

Paper Cassettes (Upper/Lower): 52 to 220 gsm

Duplex: 52 to 220 gsm

Warm-up Time

Quick Startup Mode: 4 seconds or less^*4

From Deep Sleep Mode: 60 seconds or less

From Power On: 60 seconds or less^*5

Dimensions (W x D x H)

Standard (including 1-pass DADF and flat touch panel): 670 x 770 x 1,185 mm

Installation Space (W x D)

Basic: 1,533 x 1,353 mm (with Multi-purpose tray/upper-right cover open + Front Cover open + Copy Tray)

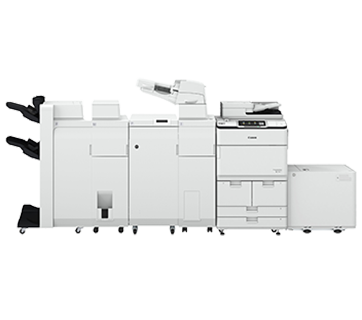

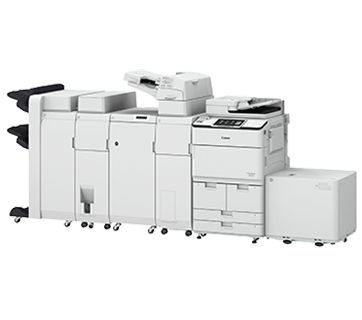

Fully configured: 5,068 x 1,409 mm (with POD Deck Lite-C1 + Document Insertion Unit-N1 + Multifunction Professional Puncher-B1 + Paper Folding Unit-J1 + Booklet Finisher-AG1 Pro + Booklet Trimmer-F1 + Main unit Front Cover open)

Weight

Standard: Approx. 221 kg^*6

Print Speed

iR-ADV DX 8905:

Up to 105 ppm (A4), up to 54 ppm (A3), up to 76 ppm (A4R), up to 105 ppm (A5R)

iR-ADV DX 8995:

Up to 95 ppm (A4), up to 50 ppm (A3), up to 69 ppm (A4R), up to 95 ppm (A5R)

iR-ADV DX 8986:

Up to 86 ppm (A4), up to 44 ppm (A3), up to 63 ppm (A4R), up to 86 ppm (A5R)

Print Resolution (dpi)

1,200 x 1,200

Page Description Languages

Standard: UFR II (standard)

Optional: PCL 6, Adobe® PostScript® 3™

Direct Print

Supported file types: PDF, EPS, TIFF/JPEG and XPS

Printing from Mobile and Cloud

AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print

A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements.

Please contact your sales representative for further information.

OS Standard Printing

Android, Windows® 10/11, Chrome OS, macOS (11.2.2 or later), iOS (15.2 or later), iPadOS

Fonts

PS fonts: 136 Roman

PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WTJ / K / S / T (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts

Print Features

Secured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced Hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer

Operating System

UFR II: Windows®10/11/Server 2012/Server 2012 R2/Server 2016/Server 2019/Server 2022, MAC OS X (10.13 or later)

PCL: Windows®10/11/Server 2012/Server 2012 R2/Server 2016/Server 2019/Server 2022

PS: Windows®10/11/Server 2012/Server 2012 R2/Server 2016/Server 2019/Server 2022, MAC OS X (10.13 or later)

PPD: Windows®10/11, MAC OS X (10.13 or later)

Copy Speed

iR-ADV DX 8905:

Up to 105 ppm (A4), up to 54 ppm (A3), up to 76 ppm (A4R), up to 105 ppm (A5R)

iR-ADV DX 8995:

Up to 95 ppm (A4), up to 50 ppm (A3), up to 69 ppm (A4R), up to 95 ppm (A5R)

iR-ADV DX 8986:

Up to 86 ppm (A4), up to 44 ppm (A3), up to 63 ppm (A4R), up to 86 ppm (A5R)

First-Copy-Out Time (A4)

Approx. 2.7 seconds or less

Copy Resolution (dpi)

600 x 600

Multiple Copies

Up to 9,999 copies

Copy Density

Automatic or Manual (9 Levels)

Magnification

Variable zoom: 25% to 400% (1% Increments)

Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%

Copy Features

Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Mirror Image, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Free Size Original, Reserved copy, Copy Sample

Type

Single-pass Duplexing Automatic Document Feeder [2-sided to 2-sided (Automatic)]^*7

Document Feeder Paper Capacity (80 gsm)

Up to 200 Sheets

Acceptable Originals and Weights

Platen: Sheet, Book, and 3-Dimensional Objects^*8

Document Feeder media weight:

1-sided scanning: 38 to 220 gsm (BW, CL)

2-sided scanning: 38 to 220 gsm (BW, CL)

Supported Media Sizes

Platen:
Max. scanning size: 297.0 x 431.8 mm

Document Feeder media size:

A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R

Custom size: 70.0 x 139.7 mm to 304.8 x 431.8 mm

Scan Speed (BW/CL, A4)

1-sided Scanning:

135/135 (300 x 300 dpi, send), 135/80 (600 x 600 dpi, copy)

2-sided Scanning:

270/270 (300 x 300 dpi, send), 165/90 (600 x 600 dpi, copy)

Scan Resolution (dpi)

Scan for Copy: 600 x 600

Scan for Send:
(Push) 600 x 600 (SMB/FTP/WebDAV/IFAX)
(Pull) 600 x 600

Scan for Fax: 600 x 600

Pull Scan Specifications

Colour Network ScanGear2. For both TWAIN and WIA

Supported OS: Windows®10/11/Server 2012/Server 2012 R2/Server 2016/Server 2019/Server 2022

Scan Method

Push Scan, Pull Scan, Scan to Box, Scan to Advanced Box, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud (uniFLOW Online)

Destination

Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box

Optional: Super G3 FAX, IP Fax

Address Book

LDAP (2,000) / Local (1,600) / One-touch (200)

Send Resolution (dpi)

Push: Up to 600 x 600

Pull: Up to 600 x 600

Communication Protocol

File: FTP (TCP/IP), SMB3.1.1 (TCP/IP), WebDAV

E-mail/I-Fax: SMTP, POP3

File Format

Standard: TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)

Universal Send Features

Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Pages

Maximum Number of Connection Lines

2

Modem Speed

Super G3: 33.6 kbps

G3: 14.4 kbps

Compression Method

MH, MR, MMR, JBIG

Resolution (dpi)

400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)

Sending/Receiving Size

Sending: A3, A4, A4R, A5^*9, A5R^*9, B4, B5^*10, B5R^*9

Receiving: A3, B4, A4, A4R, A5R, B5, B5R

Fax Memory

Up to 30,000 pages (2,000 jobs)

Speed Dials

Max. 200

Group Dials/Destinations

Max. 199 dials

Sequential Broadcast

Max. 256 addresses

Memory Backup

Yes

Fax Features

Sender’s Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox, 2 on 1 Log

Mail Box (Number Supported)

100 User Inboxes

1 Memory RX Inbox

50 Confidential Fax Inboxes

Maximum 30,000 Pages (2,000 jobs) Stored

Advanced Box

Communication Protocol: SMB or WebDAV

Supported Client PC: Windows® 10/11

Concurrent Connections (Max.): SMB:64, WebDAV:3

Advanced Box Available Disc Space

Standard: 16 GB

(With option: Max. 480 GB)

Advanced Box Features

Authentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore

Authentication and Access Control

Standard: User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)

Document Security

Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark)

Network Security

TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception

Device Security

Protecting SSD Data (SSD Data Encryption (FIPS140-2 Validated), SSD Lock), Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Automatic Recovery, Runtime Intrusion Detection)

Device Management and Auditing

Administrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting

Operating Environment

Temperature: 10 to 30°C

Humidity: 20 to 80% RH (Relative Humidity)

Power Source

220-240V, 50/60Hz, 10A

Power Consumption

Maximum: Approx. 2,400 W

Sleep mode: Approx. 0.9 W

Toner Cartridge/s

NPG-53 Black Toner

Toner (Estimated Yield @ 5% Coverage)

70,000 pages

Tracking and Reporting

Universal Login Manager (ULM)

uniFLOW Online Express

Remote Management Tools

iW Management Console

eMaintenance

Content Delivery System

Scanning Software

Color Network ScanGear 2

Optimisation Tools

Canon Driver Configuration Tool

Platform

MEAP (Multifunctional Embedded Application Platform)

Document Publishing

IW DESKTOP

Paper Deck Unit-E1

Paper Capacity: 3,500 sheets (80 gsm)

Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead

Paper Size: A4, B5

Paper Weight: 52 to 256 gsm

Power Source: from the Main Unit

Dimensions (W x D x H): 340 x 630 x 572 mm (attached to the main unit)

Weight: Approx. 34 kg

POD Deck Lite-C1

Paper Capacity: 3,500 sheets (80 gsm)

Paper Type: Thin, Plain, Recycled, Colour, Heavy, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab

Paper Size:

SRA3, A3, A4, A4R, A5R, B4, B5, B5R

Custom Size: (139.7 x 182.0 mm to 330.2 x 487.7 mm)

Paper Weight: 52 to 256 gsm

Power Source: 220-240V, 50/60Hz, 1.2A　

Dimensions (W x D x H): 633 x 686 x 574 mm (attached to the main unit)

Weight: Approx. 68 kg

Copy Tray-R2

Provides a simple tray for basic output needs.

Capacity: 250/100 sheets (1-sided/2-sided, 80 gsm)

Dimensions (W x D x H): 420 x 382 x 175 mm

Staple Finisher-AC1^*11

Tray Capacity (with 80gsm paper):

Upper Tray:

A4, A5, A5R, A6R, B5: 250 sheets

A3, A4R, B4, B5R: 125 sheets

SRA3: 30 sheets

Mid Tray:
Same as upper tray

Lower Tray:

A4, A5, A5R, B5: 3,000 sheets

SRA3, A3, A4R, B4, B5R: 1,500 sheets

A6R: 250 sheets

Paper Weight: 52 to 256 gsm

Staple Position: Corner, Double

Staple Capacity:

A4, B5: 65 sheets (52 to 90 gsm)

A3, A4R, B4: 40 sheets (52 to 90 gsm)

Eco Staple: A3, A4

5 sheets (52 to 64 gsm)

4 sheets (65 to 81.4 gsm)

3 sheets (81.5 to 105 gsm)

Staple On Demand: 65 sheets (52 to 90 gsm)

Power Source: From the main unit

Dimensions (W x D x H): 656 × 623 × 1,195 mm (when the extension tray and rotary tray are extended)

Weight: Approx. 36 kg

Booklet Finisher-AC2^*11

(Includes the above Staple Finisher-AC1 basic staple specifications)

Saddle Stitch paper size: A3, A4R, B4, Custom Size (182.0 x 210.0 mm to 304.8 x 457.2 mm)

Saddle Stitch Staple Capacity: 20 sheets x 10 sets (52 to 81.4 gsm) (including 1 cover sheet up to 256 gsm)

Non Staple Folded Bunch Capacity: 3 sheets (52 to 105 gsm)

Power Source: From the main unit

Dimensions (W x D x H): 656 × 623 × 1,195 mm (when the extension tray and rotary tray are extended)

Weight: Approx. 60 kg

Staple Finisher-X1

Tray Capacity (with 80 gsm paper):

Upper Tray:

A4, A5R, B5: 1,500 sheets

SRA3, A3, A4R, A5, B4, B5R: 750 sheets

A6R: 250 sheets

Mid Tray:

A4, A5R, B5: 250 sheets

A3, A4R, A5, A6R, B4, B5R: 125 sheets

SRA3: 30 sheets

Lower Tray:

A4, B5: 2,500 sheets (Cascade-Load mode)

A4, A5R, B5: 1,500 sheets

SRA3, A3, A4R, A5, B4, B5R: 750 sheets

A6R: 250 sheets

Paper Weight: 52 to 256 gsm

Staple Position: Corner, Double

Staple Capacity:

A4, B5: 100 sheets (52 to 80 gsm)

A3, A4R, B4: 50 sheets (52 to 80 gsm)

Power Source: 100-240V AC, 50-60 Hz, 2.8 A

Dimensions (W x D x H): 782 × 765 × 1,040 mm (when the extension tray is extended)

Weight: Approx. 64 kg

Booklet Finisher-X1

(Includes the above Staple Finisher-X1 basic specifications)

Saddle Stitch paper size:

SRA3, A3, A4R, B4, Custom Size (195.0 x 270.0 mm to 330.2 x 457.2 mm)

Saddle Stitch Staple Capacity:

20 sheets x 5 sets (60 to 81.4 gsm) (including 1 cover sheet up to 256 gsm)

Non Staple Folded Bunch Capacity: 5 sheets (60 to 105 gsm)

Power Source: 100-240V AC, 50-60 Hz, 2.8A

Dimensions (W x D x H): 896 × 765 × 1,040 mm (when the extension tray is extended)

Weight: Approx. 110 kg

Staple Finisher-AG1

Tray Capacity (with 80 gsm paper):

Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 1,000 sheets

Z-Fold: A3, B4: 30 sheets

Half-Fold: A4R 50 sheets

Lower Tray:

If the High-Volume Stack Mode is set to “ON”:

A4, B5: 4,000 Sheets

A4R, B5R: 2,000 Sheets

SRA3, A3, B4: 1500 Sheets

SRA3: 1000 Sheets

If the High-Volume Stack Mode is set to “OFF”:

A4, B5: 2,000 Sheets

SRA3, A3, A4R, B4, B5R: 1,000 Sheets

Paper Weight: 52 to 256 gsm

Staple Position: Corner, Double

Staple Capacity (Corner and Double Stapling):
A4, B5: 100 sheets (52 to 80 gsm)

A3, A4R, B4, B5R: 50 sheets (52 to 81.4 gsm)

Power Source: 220-240V/50-60 Hz/8A

Dimensions (W x D x H): 890 × 792 × 1,239 mm (when the extension tray is extended)

Weight: Approx. 130 kg

Booklet Finisher-AG1

(Includes the above Staple Finisher-AG1 basic specifications)

Saddle Stitch paper size:

SRA3, A3, A4R, B4, Custom Size (210.0 x 279.4 mm to 330.2 x 487.7 mm)

Saddle Stitch Staple Capacity: 25 sheets (52 to 80 gsm) (including 1 cover sheet up to 256 gsm)

Non Staple Folded Bunch Capacity: Up to 5 sheets (52 to 209 gsm)

Power Source: 220-240V, 50-60 Hz, 8A

Dimensions (W x D x H): 1,060 x 792 x 1,239 mm (when the extension tray is extended)

Weight: Approx. 180 kg

2/3 Hole Puncher Unit-A1

(Requires either the Staple Finisher-AC1 or Booklet Finisher-AC2)

Two or Three Holes

Acceptable Punch Paper Weight: 52 to 256 gsm

Acceptable Punch Paper Size:

Two holes: A3, A4, A4R, A5, B4, B5, B5R

Three holes: A3, A4, B4, B5

Power Source: From the finisher

2/4 Hole Puncher Unit-A1

(Requires either the Staple Finisher-AC1 or Booklet Finisher-AC2)

Two or Four Holes

Acceptable Punch Paper Weight: 52 to 256 gsm

Acceptable Punch Paper Size:

Two holes: A3, A4, A4R, A5, B4, B5, B5R

Four holes: A3, A4

Power Source: From the finisher

Puncher Unit-BF1

(Requires either the Staple Finisher-X1 or Booklet Finisher-X1)

Two or Three Holes

Acceptable Punch Paper Weight: 52 to 256 gsm

Acceptable Punch Paper Size:

Two holes: A3, A4, A4R, A5

Three holes: A3, A4

Power Source: From the finisher

Puncher Unit-BG1

(Requires either the Staple Finisher-X1 or Booklet Finisher-X1)

Two or Four Holes

Acceptable Punch Paper Weight: 52 to 256 gsm

Acceptable Punch Paper Size:

Two holes: A3, A4, A4R, A5, B5R

Four holes: A3, A4

Power Source: From the finisher

Puncher Unit-BS1

(Requires either the Staple Finisher-AG1 or Booklet Finisher-AG1)

Two or Three Holes

Acceptable Punch Paper Weight: 52 to 256 gsm

Acceptable Punch Paper Size:

Two holes: Custom size (182.0 x 182.0 mm to 297.0 x 432.0 mm)

Three holes: Custom size (240.0 x 182.0 mm to 297.0 x 432.0 mm)

Power Supply: From the finisher

Puncher Unit-BT1

(Requires either the Staple Finisher-AG1 or Booklet Finisher-AG1)

Two or Four Holes

Acceptable Punch Paper Weight: 52 to 256 gsm

Acceptable Punch Paper Size:

Two holes: A3, A4, A4R, A5, B4, B5, B5R, Custom size (182.0 x 182.0 mm to 297.0 x 432.0 mm, excluding 203 x 257 mm to 297 x 270 mm)

Four holes:A3, A4, B4, B5, Custom size (257.0 x 182.0 mm to 297.0 x 432.0 mm)

Power Supply: From the finisher

Puncher Unit-BU1

(Requires either the Staple Finisher-AG1 or Booklet Finisher-AG1)

Four Holes

Acceptable Punch Paper Weight: 52 to 256 gsm

Acceptable Punch Paper Size:

Four holes A3, A4, A5, B4, B5, Custom size (257.0 x 182.0 mm to 297.0 x 432.0 mm)

Power Supply: From the finisher

Multi Function Professional Puncher-C1

(Requires either the Staple Finisher-X1, Booklet Finisher-X1, Staple Finisher-AG1 or Booklet Finisher-AG1)

Acceptable Punch Paper Weight:

Bypass: 75 to 256 gsm

Punch: 75 to 256 gsm

Acceptable Punch Paper Size:

Bypass: 100 x 148 mm to 330.2 x 487.7 mm

Punch: A3, A4, A4R, A5

Supported Punch Dies (optional):

A4: Loose Leaf (2- or 4-hole), Velo Bind (12-hole), Plastic comb (21-hole), Twin Loop (23- or 34-hole), Color Coil (47-hole)

Power Source: 230V, 50Hz, 2.0 A

Dimensions (W x D x H): 445 x 795 x 1,040 mm

Weight: 102 kg

Inner Booklet Trimmer-A1

(Requires Booklet Finisher-X1)

Waste Tray Capacity: Approx. 1,500 Sheets

Acceptable Paper Weight: 60 to 256 gsm

Trim Amount: 2 to 20 mm

Acceptable Paper Size: SRA3, A3, A4R, B4, Custom size: 195 x 270 mm to 330.2x 457.2 mm

Power Source: From the finisher

Booklet Trimmer-G1

(Requires Booklet Finisher-AG1)

Booklet Capacity: 10 booklets (booklet size: A4, 50 sheets, 80 gsm)

Acceptable Paper Weight: 52 to 256 gsm, 64 to 300gsm (cover sheet only)

Acceptable Paper Size:

SRA3, A3, A4R, B4, Custom size: 210.0 x 279.4 mm to 330.2 x 487.7 mm

Trim Amount: 2 to 28 mm

Trimming Capacity: up to 25 sheets (50 sheets by Half-Fold) (52 to 80 gsm)

Waste Tray Capacity: Approx. 5,000 Sheets

Power Source: From the Booklet Finisher-W1 PRO

Dimensions: 2,095 x 790 x 1,040 mm (including joint)

Weight: Approx. 178 kg

Document Insertion Unit-R1

(Requires either the Staple Finisher-X1, Booklet Finisher-X1, Staple Finisher-AG1 or Booklet Finisher-AG1)

Number of Trays: 2

Tray Capacity (with 80 gsm paper):

Upper tray: 200 sheets

Lower tray: 200 sheets

Acceptable Paper Type: Thin, Plain, Recycled, Colour, Heavy, Coated, Tracing, Bond, Pre-punched, Letterhead, Tab

Acceptable Paper Size:

SRA3, A3, A4, A4R, B4, B5, B5R, Custom size: 182 x 182 mm to 330.2 x 487.7 mm

Acceptable Paper Weight: 52 to 256 gsm

Power Supply: 100-240V, 50/60Hz, 1.0 A

Dimensions (W x D x H): 336 x 793 x 1,407 mm (attached to the device: width excluding document tray)

Weight: Approx. 61 kg

Paper Folding Unit-K1

(Requires either the Staple Finisher-X1, Booklet Finisher-X1, Staple Finisher-AG1 or Booklet Finisher-AG1)

Supported Folding Type: Z-Fold, C-Fold, Accordion-Z-Fold, Double Parallel-Fold, Half-Fold

Acceptable Paper Type: Thin, Plain, Recycled, Colour, Bond

Acceptable Paper Sizes:

Z-Fold: A3, A4R, B4

C-Fold, Accordion Z-Fold, Half-Fold, Double-parallel Fold: A4R

Acceptable Paper Weight:

Z-Fold, Accordion Z-Fold, C-Fold, Half-Fold: 52 to 105 gsm

Double Parallel Fold: 52 to 90 gsm

Output Capacity (with 80 gsm paper):

C-Fold/Accordion Z-Fold: approx. 40 sheets

Double Parallel-Fold: approx. 25 sheets

with Staple Finisher-X1 or Saddle Finisher-X1 (in total)

Z-Fold: A3, B4: 70 sheets, A4R: 30 sheets

Half-Fold: A4R: 30 sheets

with Staple Finisher-W1 PRO or Saddle Finisher-W1 PRO (in total)

Z-Fold: A3, B4: 60 sheets

Half-Fold: A4R: 50 sheets

Power Source: From the finisher

Dimensions (W x D x H): 336 x 793 x 1,190 mm

Weight: Approx. 71 kg

Card Readers

Copy Card Reader-F1

Copy Card Reader Attachment-A4

Utility Tray-B1

Tab Feeding Attachment Kit-B1

Numeric Keypad-A1

Finisher Jogger Kit-A1

Data Security

250 GB SSD-A1

1 TB SSD-A1

MEMORY Mirroring Kit-A1

Print Accessories

PCL International Font Set-A1

PCL PRINTER KIT-BD1/CK1

PS PRINTER KIT-BD1/CK1

PCL Asian Font Set-A1

Barcode Printing

Barcode Printing Kit-D1

System Accessories

Copy Control Interface Kit-A1

Serial Interface Kit-K3

Fax Accessories

Super G3 FAX Board-AS1

Super G3 2nd Line Fax Board-AS1

IP FAX Expansion Kit-B1

Remote Fax Kit-A1

Accessibility Accessories

ADF Access Handle-A1

Voice Guidance Kit-G1

Voice Operation Kit-D1

Staple Cartridges

Staple-N1

Staple-P1

Staple Cartridge-X1

Staple Cartridge-Y1
