imagePROGRAF TX-5220
imagePROGRAF TX-5220

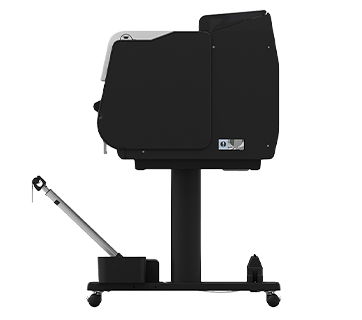

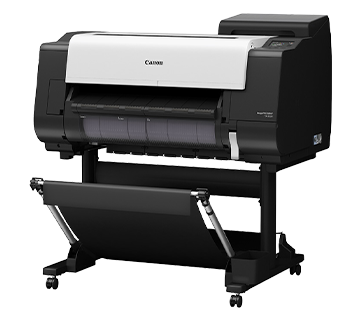

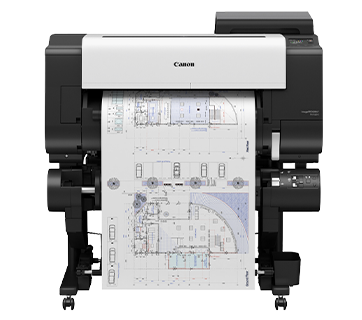

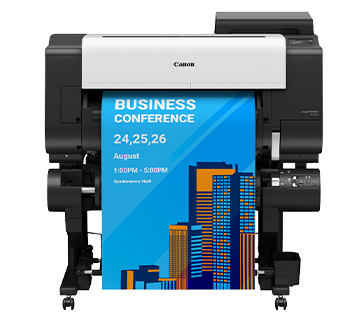

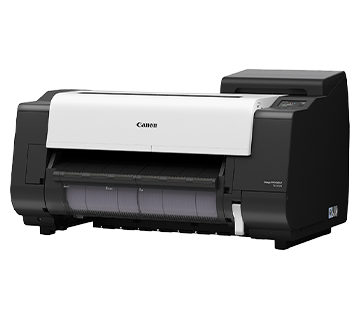

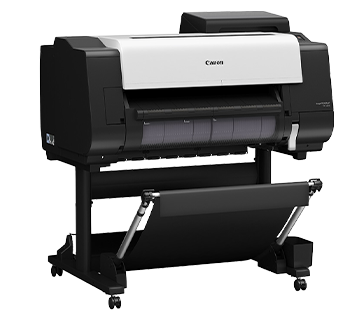

Elevating the benchmark for quality
The new 24″ printer is the new upgrade model from low entry models, catering to users with this new option for fast printing speed and high productivity! It offers optional roll unit and stacker for daily operations.
Description
Features
Fast Print Speed
The TX series realised faster throughput during continuous printing by optimising the pre-processing of print data, process of media cutting and media transport. Pre-print operation and print spooling have been optimised to achieve faster first print from standby or sleep mode.
Productivity at Its Peak

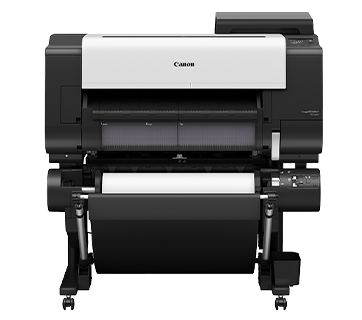

Dual-roll feeding unit enables users to load up to two rolls of media, reducing the frequency of switching between different media types or sizes in high volume printing. Optional stacker supports neat output collations, while the sub ink tank system allows empty ink tanks to be replaced while the printer continues to print, maximising productivity.
Smart Roll Paper Set
All models are equipped with an advanced Smart Roll Paper Set function that automatically detects paper feed and type and estimates the remaining paper quantity. The speed-up of the paper feeding process reduces the time it takes to load the roll paper.
Specifications
Specifications
Printer
|
Printer Type |
5-Colour 24″ (610 mm) |
|
Number of Nozzles |
15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each） |
|
Maximum Print Resolution |
2,400 × 1,200 dpi |
|
Nozzle Pitch |
1,200 dpi (2 lines) |
|
Line Accuracy*1 |
± 0.1% or less |
|
Minimum Ink Droplet Size |
5 pl |
|
Ink Capacity |
Sales Ink: 160 ml / 330 ml / 700 ml (MBK, BK, C, M, Y) |
|
Ink Type |
Pigment Ink |
|
Printer Language |
SG Raster (Swift Graphic Raster) |
|
Printing Solutions |
Direct Print Plus, CPP PRISMAproduce Tech, Easy-PhotoPrint Editor, Canon PRINT (Mobile), Canon Print Service (Mobile), Free Layout Plus, PosterArtist Wndows/Lite/Web |
|
Management Solutions |
Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box |
|
Standard Interfaces (Built-in) |
USB A Port: USB B Port (Series B, 4 pins): Gigabit Ethernet: Wireless LAN: |
|
Memory |
Standard: 128 GB |
|
Hard Disk |
500 GB (Encrypted) |
Print Speed*3
|
Plain Paper |
|
|
CAD Drawings, A1 |
20 sec [Fast (Custom Q5)] |
|
Poster, A1 |
20 sec [Fast (Custom Q5)] |
|
Heavyweight Coated Paper HG |
|
|
Poster, A1 |
49 sec [Fast] |
|
Glossy Photo Paper HG 170 |
|
|
Poster, A1 |
1 min 40 sec [Fast] |
Media Handling
|
Media Feed and Output |
|
|
Roll Paper (Single) |
Front Load, Front Output |
|
Cut Sheet |
Front Load, Front Output*4 |
|
Media Width (Roll / Cut Sheet) |
152.4 ～ 610 mm |
|
Media Thickness (Roll / Cut Sheet) |
0.07 ～ 0.8 mm |
|
Min. Printable Length |
|
|
Roll Paper |
101.6 mm*5 |
|
Cut Sheet |
203.2 mm |
|
Max. Printable Length |
|
|
Roll Paper |
18 m*6 |
|
Cut Sheet |
1.6 m |
|
Maximum Outer Roll Diameter |
170 mm or less |
|
Borderless Printing Width |
152.4 ～ 610 mm |
|
Margins (Recommended Area) |
|
|
Roll Paper |
Top: 20 mm, Bottom: 3 mm, Side: 3 mm |
|
Cut Sheet (Others) |
Top: 20 mm, Bottom: 20 mm, Side: 3 mm |
|
Margins (Printable Area) |
|
|
Roll Paper |
Top: 3 mm, Bottom: 3 mm, Side: 3 mm |
|
Roll Paper (Borderless Print) |
Top: 0 mm, Bottom: 0 mm, Side: 0 mm |
|
Cut Sheet (Others) |
Top: 3 mm, Bottom: 20 mm, Side: 3 mm |
Dimensions & Weight*7
|
Dimensions (W x D x H) |
|
|
Main Unit |
1,110 x 734 x 629 mm |
|
Main Unit + Stand + Basket |
1,110 x 984 x 1,168 mm (Basket Opened) |
|
Main Unit + Roll Unit + Stand + Stacker |
1,110 x 1,188 x 1,168 mm (Stacker Opened) |
|
Roll Unit |
1,094 x 336 x 318 mm |
|
Weight |
|
|
Main Unit |
75 kg |
|
Main Unit + Stand + Basket |
91 kg |
|
Main Unit + Roll Unit + Stand + Basket |
107 kg |
|
Main Unit + Roll Unit + Stand + Stacker |
117 kg |
|
Roll Unit |
16 kg |
|
Packaged Dimensions (W x D x H) |
|
|
Main Unit + Pallet |
1,338 x 912 x 1,139 mm |
|
Stand + Basket |
1,174 x 827 x 223 mm |
|
Main Unit + Stand + Pallet |
1,338 x 912 x 1,139 mm |
|
Stacker |
969 x 906 x 291 mm |
|
Roll Unit |
1,244 x 562 x 461mm |
|
Packaged Weight |
|
|
Main Unit + Pallet |
122 kg |
|
Stand + Basket |
27 kg |
|
Main Unit + Stand + Pallet |
140 kg |
|
Stacker |
24 kg |
|
Roll Unit |
28 kg |
Power & Operating Requirements
|
Power Supply |
AC 100 – 240 V, 50 – 60 Hz |
|
Power Consumption |
|
|
Printing |
Approx. 86 W |
|
Sleep Mode |
Approx. 1.7 W |
|
Power Off |
Approx. 0.1 W |
|
Operating Environment |
|
|
Temperature |
15 ～ 30 °C |
|
Humidity |
10 ～ 80 % RH (no dew condensation) |
|
Acoustic Sound |
|
|
Acoustic Power*8 |
Operation: Approx. 68 dB |
|
Acoustic Pressure*8 |
Operation: Approx. 50 dB (A) |
Accessories
|
Roll Unit (Optional) |
RU-22 |
|
Printer Stand (Optional) |
SD-21 |
|
Stacker (Optional) |
SS-21 |
|
2″/3″ Roll Holder (Optional) |
RH2-29 |
Consumables
|
Print Head |
PF-06 |
|
Cutter Blade |
CT-07 |
|
Maintenance Cartridge |
MC-30 |
|
Ink Tank |
Matte Black / Black / Cyan / Yellow: PFI-8110 (160 ml) / PFI-8310 (330 ml) / PFI-8710 (700 ml) |
- User adjustments is required.
Printing environment and media must match those used for the adjustments.
Paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only. - Support IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP).
- Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Manual feed using media locking lever.
- For cloth, canvas, tracing paper and translucent matte film media, minimum printable length is 200 mm.
- Varies according to the OS and application.
- Include roll holder set, exclude ink and print head.
- Measured using ISO 7779 standard by using 36 inch plain paper, standard mode and line drawing / text mode.
